0000333: Boot failure on legacy hardware (kernel panic on Intel P8700 and Intel E5300) - MantisBT

ID	Project	Category	View Status	Date Submitted	Last Update
0000333	AlmaLinux-9	kernel	public	2022-11-18 18:04	2022-12-09 23:22

Reporter	dufgrinder	Assigned To	elkhan
Priority	normal	Severity	block	Reproducibility	always
Status	resolved	Resolution	fixed
Platform	Legacy Intel Core Duo	OS	almalinux	OS Version	9.1

Summary	0000333: Boot failure on legacy hardware (kernel panic on Intel P8700 and Intel E5300)

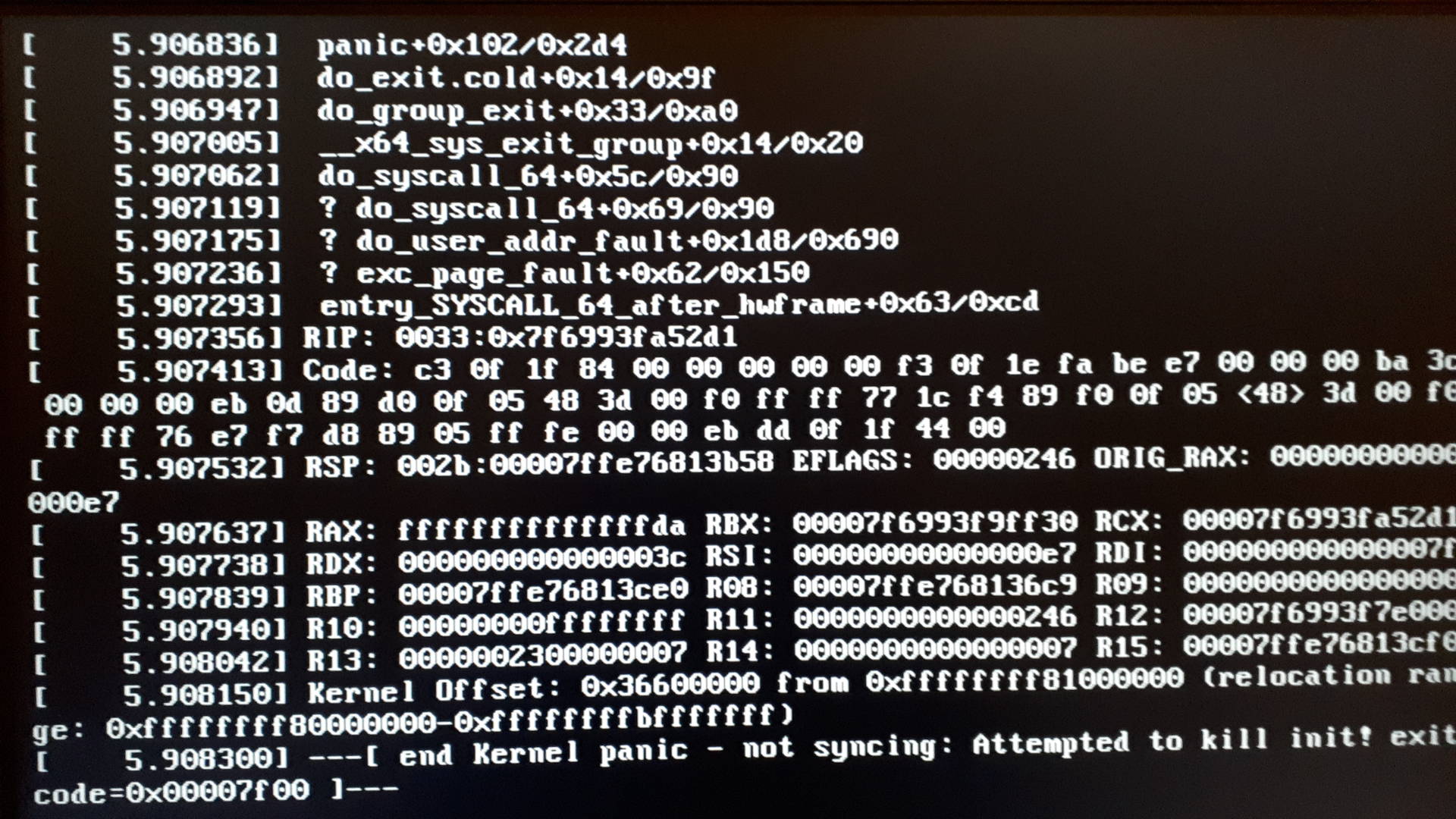

Description	When booting on USB key with alma linux : AlmaLinux-9.1-x86_64-minimal.iso The boot menu appears, but few seconds after the selection of "Install", the computer freezes on a kernel Panic (see screenshots attached) Append on my both "legacy" computer: - Laptop Fujistu S7220 with an Intel P8700 - Tower Compaq 500B with an Intel E5300 Both computer are working fine on Almalinux 8.6 and Fedora 36
Steps To Reproduce	Insert the USB Power on the computer Select boot menu Boot on the displayed USB Key Select the "Install" option And the finally computer blocks (kernl panic)
Additional Information	Attached to the mail: Kernel Panic pictures lshw and lspci of both computer
Tags	x86-64-v2
Attached Files	Compaq-500B-lspci.txt (1,578 bytes) 00:00.0 Host bridge: Intel Corporation 4 Series Chipset DRAM Controller (rev 03) 00:01.0 PCI bridge: Intel Corporation 4 Series Chipset PCI Express Root Port (rev 03) 00:1b.0 Audio device: Intel Corporation NM10/ICH7 Family High Definition Audio Controller (rev 01) 00:1c.0 PCI bridge: Intel Corporation NM10/ICH7 Family PCI Express Port 1 (rev 01) 00:1c.1 PCI bridge: Intel Corporation NM10/ICH7 Family PCI Express Port 2 (rev 01) 00:1d.0 USB controller: Intel Corporation NM10/ICH7 Family USB UHCI Controller #1 (rev 01) 00:1d.1 USB controller: Intel Corporation NM10/ICH7 Family USB UHCI Controller #2 (rev 01) 00:1d.2 USB controller: Intel Corporation NM10/ICH7 Family USB UHCI Controller #3 (rev 01) 00:1d.3 USB controller: Intel Corporation NM10/ICH7 Family USB UHCI Controller #4 (rev 01) 00:1d.7 USB controller: Intel Corporation NM10/ICH7 Family USB2 EHCI Controller (rev 01) 00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev e1) 00:1f.0 ISA bridge: Intel Corporation 82801GB/GR (ICH7 Family) LPC Interface Bridge (rev 01) 00:1f.1 IDE interface: Intel Corporation 82801G (ICH7 Family) IDE Controller (rev 01) 00:1f.2 IDE interface: Intel Corporation NM10/ICH7 Family SATA Controller [IDE mode] (rev 01) 00:1f.3 SMBus: Intel Corporation NM10/ICH7 Family SMBus Controller (rev 01) 01:00.0 VGA compatible controller: NVIDIA Corporation GF119 [GeForce GT 520] (rev a1) 01:00.1 Audio device: NVIDIA Corporation GF119 HDMI Audio Controller (rev a1) 03:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL810xE PCI Express Fast Ethernet controller (rev 02) Compaq-500B-lspci.txt (1,578 bytes) Compaq-500B-lspcu.txt (1,403 bytes) Architecture : x86_64 Mode(s) opératoire(s) des processeurs : 32-bit, 64-bit Boutisme : Little Endian Processeur(s) : 2 Liste de processeur(s) en ligne : 0,1 Thread(s) par cœur : 1 Cœur(s) par socket : 2 Socket(s) : 1 Nœud(s) NUMA : 1 Identifiant constructeur : GenuineIntel Famille de processeur : 6 Modèle : 23 Nom de modèle : Pentium(R) Dual-Core CPU E5300 @ 2.60GHz Révision : 10 Vitesse du processeur en MHz : 2266.956 Vitesse maximale du processeur en MHz : 2603,0000 Vitesse minimale du processeur en MHz : 1203,0000 BogoMIPS : 5200.13 Cache L1d : 32K Cache L1i : 32K Cache L2 : 2048K Nœud NUMA 0 de processeur(s) : 0,1 Drapaux : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ht tm pbe syscall nx lm constant_tsc arch_perfmon pebs bts rep_good nopl cpuid aperfmperf pni dtes64 monitor ds_cpl est tm2 ssse3 cx16 xtpr pdcm xsave lahf_lm pti dtherm Compaq-500B-lspcu.txt (1,403 bytes) Compaq-lshw.html (114,541 bytes) <?xml version="1.0" encoding="utf-8"?> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html xmlns="http://www.w3.org/1999/xhtml"> <head> <meta name="generator" content="lshw-B.02.19.2" /> <style type="text/css"> .first {font-weight: bold; margin-left: none; padding-right: 1em;vertical-align: top; } .second {padding-left: 1em; width: 100%; vertical-align: center; } .id {font-family: monospace;} .indented {margin-left: 2em; border-left: dotted thin #dde; padding-bottom: 1em; } .node {border: solid thin #ffcc66; padding: 1em; background: #ffffcc; } .node-unclaimed {border: dotted thin #c3c3c3; padding: 1em; background: #fafafa; color: red; } .node-disabled {border: solid thin #f55; padding: 1em; background: #fee; color: gray; } </style> <title>deyme10</title> </head> <body> <div class="indented"> <table width="100%" class="node" summary="attributes of deyme10"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">deyme10</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Desktop Computer</td></tr> <tr><td class="first">product: </td><td class="second">Compaq 500B Microtower (VW059EA#ABF)</td></tr> <tr><td class="first">vendor: </td><td class="second">Hewlett-Packard</td></tr> <tr><td class="first">serial: </td><td class="second">CZC94524X3</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="SMBIOS version 2.6">smbios-2.6</dfn> <dfn title="DMI version 2.6">dmi-2.6</dfn> <dfn title="Symmetric Multi-Processing">smp</dfn> <dfn title="32-bit processes">vsyscall32</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of deyme10"><tr><td class="sub-first"> boot</td><td>=</td><td>normal</td></tr><tr><td class="sub-first"> chassis</td><td>=</td><td>desktop</td></tr><tr><td class="sub-first"> family</td><td>=</td><td>103C_53307F</td></tr><tr><td class="sub-first"> sku</td><td>=</td><td>VW059EA#ABF</td></tr><tr><td class="sub-first"> uuid</td><td>=</td><td>6bb575d8-ce9b-11de-b377-a15b93b9f120</td></tr></table></td></tr> </tbody></table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of core"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">core</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Motherboard</td></tr> <tr><td class="first">product: </td><td class="second">2A8Ch</td></tr> <tr><td class="first">vendor: </td><td class="second">FOXCONN</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">version: </td><td class="second">1.0</td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of firmware"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">firmware</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">BIOS</td></tr> <tr><td class="first">vendor: </td><td class="second">American Megatrends Inc.</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">version: </td><td class="second">5.05</td></tr> <tr><td class="first">date: </td><td class="second">09/25/2009</td></tr> <tr><td class="first">size: </td><td class="second">64KiB</td></tr> <tr><td class="first">capacity: </td><td class="second">1MiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="ISA bus">isa</dfn> <dfn title="PCI bus">pci</dfn> <dfn title="Plug-and-Play">pnp</dfn> <dfn title="BIOS EEPROM can be upgraded">upgrade</dfn> <dfn title="BIOS shadowing">shadowing</dfn> <dfn title="ESCD">escd</dfn> <dfn title="Booting from CD-ROM/DVD">cdboot</dfn> <dfn title="Selectable boot path">bootselect</dfn> <dfn title="BIOS ROM is socketed">socketedrom</dfn> <dfn title="Enhanced Disk Drive extensions">edd</dfn> <dfn title="5.25" 1.2MB floppy">int13floppy1200</dfn> <dfn title="3.5" 720KB floppy">int13floppy720</dfn> <dfn title="3.5" 2.88MB floppy">int13floppy2880</dfn> <dfn title="Print Screen key">int5printscreen</dfn> <dfn title="i8042 keyboard controller">int9keyboard</dfn> <dfn title="INT14 serial line control">int14serial</dfn> <dfn title="INT17 printer control">int17printer</dfn> <dfn title="INT10 CGA/Mono video">int10video</dfn> <dfn title="ACPI">acpi</dfn> <dfn title="USB legacy emulation">usb</dfn> <dfn title="Booting from LS-120">ls120boot</dfn> <dfn title="Booting from ATAPI ZIP">zipboot</dfn> <dfn title="BIOS boot specification">biosbootspecification</dfn> <dfn title="Function-key initiated network service boot">netboot</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of cpu"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">cpu</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">CPU</td></tr> <tr><td class="first">product: </td><td class="second">Pentium(R) Dual-Core CPU E5300 @ 2.60GHz</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corp.</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">4</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">cpu@0</div></td></tr> <tr><td class="first">version: </td><td class="second">6.23.10</td></tr> <tr><td class="first">slot: </td><td class="second">CPU 1</td></tr> <tr><td class="first">size: </td><td class="second">2245MHz</td></tr> <tr><td class="first">capacity: </td><td class="second">2603MHz</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">800MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="64bits extensions (x86-64)">lm</dfn> <dfn title="mathematical co-processor">fpu</dfn> <dfn title="FPU exceptions reporting">fpu_exception</dfn> <dfn title="">wp</dfn> <dfn title="virtual mode extensions">vme</dfn> <dfn title="debugging extensions">de</dfn> <dfn title="page size extensions">pse</dfn> <dfn title="time stamp counter">tsc</dfn> <dfn title="model-specific registers">msr</dfn> <dfn title="4GB+ memory addressing (Physical Address Extension)">pae</dfn> <dfn title="machine check exceptions">mce</dfn> <dfn title="compare and exchange 8-byte">cx8</dfn> <dfn title="on-chip advanced programmable interrupt controller (APIC)">apic</dfn> <dfn title="fast system calls">sep</dfn> <dfn title="memory type range registers">mtrr</dfn> <dfn title="page global enable">pge</dfn> <dfn title="machine check architecture">mca</dfn> <dfn title="conditional move instruction">cmov</dfn> <dfn title="page attribute table">pat</dfn> <dfn title="36-bit page size extensions">pse36</dfn> <dfn title="">clflush</dfn> <dfn title="debug trace and EMON store MSRs">dts</dfn> <dfn title="thermal control (ACPI)">acpi</dfn> <dfn title="multimedia extensions (MMX)">mmx</dfn> <dfn title="fast floating point save/restore">fxsr</dfn> <dfn title="streaming SIMD extensions (SSE)">sse</dfn> <dfn title="streaming SIMD extensions (SSE2)">sse2</dfn> <dfn title="HyperThreading">ht</dfn> <dfn title="thermal interrupt and status">tm</dfn> <dfn title="pending break event">pbe</dfn> <dfn title="fast system calls">syscall</dfn> <dfn title="no-execute bit (NX)">nx</dfn> <dfn title="64bits extensions (x86-64)">x86-64</dfn> <dfn title="">constant_tsc</dfn> <dfn title="">arch_perfmon</dfn> <dfn title="">pebs</dfn> <dfn title="">bts</dfn> <dfn title="">rep_good</dfn> <dfn title="">nopl</dfn> <dfn title="">cpuid</dfn> <dfn title="">aperfmperf</dfn> <dfn title="">pni</dfn> <dfn title="">dtes64</dfn> <dfn title="">monitor</dfn> <dfn title="">ds_cpl</dfn> <dfn title="">est</dfn> <dfn title="">tm2</dfn> <dfn title="">ssse3</dfn> <dfn title="">cx16</dfn> <dfn title="">xtpr</dfn> <dfn title="">pdcm</dfn> <dfn title="">xsave</dfn> <dfn title="">lahf_lm</dfn> <dfn title="">pti</dfn> <dfn title="">dtherm</dfn> <dfn title="CPU Frequency scaling">cpufreq</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of cpu"><tr><td class="sub-first"> cores</td><td>=</td><td>2</td></tr><tr><td class="sub-first"> enabledcores</td><td>=</td><td>2</td></tr><tr><td class="sub-first"> microcode</td><td>=</td><td>2571</td></tr><tr><td class="sub-first"> threads</td><td>=</td><td>2</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of cache:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">cache:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">L1 cache</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">5</div></td></tr> <tr><td class="first">slot: </td><td class="second">L1-Cache</td></tr> <tr><td class="first">size: </td><td class="second">64KiB</td></tr> <tr><td class="first">capacity: </td><td class="second">64KiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Internal">internal</dfn> <dfn title="Write-back">write-back</dfn> <dfn title="Data cache">data</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of cache:0"><tr><td class="sub-first"> level</td><td>=</td><td>1</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of cache:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">cache:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">L2 cache</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">6</div></td></tr> <tr><td class="first">slot: </td><td class="second">L2-Cache</td></tr> <tr><td class="first">size: </td><td class="second">2MiB</td></tr> <tr><td class="first">capacity: </td><td class="second">2MiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Internal">internal</dfn> <dfn title="Write-back">write-back</dfn> <dfn title="Unified cache">unified</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of cache:1"><tr><td class="sub-first"> level</td><td>=</td><td>2</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of memory"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">memory</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">System Memory</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">e</div></td></tr> <tr><td class="first">slot: </td><td class="second">System board or motherboard</td></tr> <tr><td class="first">size: </td><td class="second">6GiB</td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of bank:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">bank:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">DIMM DDR3 Synchronous 800 MHz (1,2 ns)</td></tr> <tr><td class="first">product: </td><td class="second">CT51264BA160B.C16F</td></tr> <tr><td class="first">vendor: </td><td class="second">Manufacturer00</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">serial: </td><td class="second">00000000</td></tr> <tr><td class="first">slot: </td><td class="second">DIMM0</td></tr> <tr><td class="first">size: </td><td class="second">4GiB</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">800MHz (1.2ns)</td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of bank:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">bank:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">DIMM DDR3 Synchronous 800 MHz (1,2 ns)</td></tr> <tr><td class="first">product: </td><td class="second">M378B5673EH1-CH9</td></tr> <tr><td class="first">vendor: </td><td class="second">Samsung</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">serial: </td><td class="second">949A3AB0</td></tr> <tr><td class="first">slot: </td><td class="second">DIMM1</td></tr> <tr><td class="first">size: </td><td class="second">2GiB</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">800MHz (1.2ns)</td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pci"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pci</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Host bridge</td></tr> <tr><td class="first">product: </td><td class="second">4 Series Chipset DRAM Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">100</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:00.0</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pci:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pci:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">PCI bridge</td></tr> <tr><td class="first">product: </td><td class="second">4 Series Chipset PCI Express Root Port</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:01.0</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pci</dfn> <dfn title="Power Management">pm</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="">normal_decode</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pci:0"><tr><td class="sub-first"> driver</td><td>=</td><td>pcieport</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of pci:0"><tr><td class="sub-first"> irq</td><td>:</td><td>24</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>d000(size=4096)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>fd000000-feafffff</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>f0000000(size=167772160)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of display"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">display</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">VGA compatible controller</td></tr> <tr><td class="first">product: </td><td class="second">GF119 [GeForce GT 520]</td></tr> <tr><td class="first">vendor: </td><td class="second">NVIDIA Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:01:00.0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/fb0</div></td></tr> <tr><td class="first">version: </td><td class="second">a1</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Power Management">pm</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="">vga_controller</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> <dfn title="extension ROM">rom</dfn> <dfn title="framebuffer">fb</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of display"><tr><td class="sub-first"> depth</td><td>=</td><td>32</td></tr><tr><td class="sub-first"> driver</td><td>=</td><td>nouveau</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr><tr><td class="sub-first"> resolution</td><td>=</td><td>1920,1200</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of display"><tr><td class="sub-first"> irq</td><td>:</td><td>27</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>fd000000-fdffffff</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f0000000-f7ffffff</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f8000000-f9ffffff</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>dc00(size=128)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>c0000-dffff</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of multimedia"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">multimedia</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Audio device</td></tr> <tr><td class="first">product: </td><td class="second">GF119 HDMI Audio Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">NVIDIA Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0.1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:01:00.1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">card1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/controlC1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/hwC1D0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/pcmC1D3p</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/pcmC1D7p</div></td></tr> <tr><td class="first">version: </td><td class="second">a1</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Power Management">pm</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of multimedia"><tr><td class="sub-first"> driver</td><td>=</td><td>snd_hda_intel</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of multimedia"><tr><td class="sub-first"> irq</td><td>:</td><td>17</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>fea7c000-fea7ffff</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:0</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">HDA NVidia HDMI/DP,pcm=3</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input10</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event7</div></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:1</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">HDA NVidia HDMI/DP,pcm=7</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input11</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event8</div></td></tr> </tbody> </table></div> </div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of multimedia"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">multimedia</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Audio device</td></tr> <tr><td class="first">product: </td><td class="second">NM10/ICH7 Family High Definition Audio Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1b</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1b.0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">card0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/controlC0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/hwC0D0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/pcmC0D0c</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/pcmC0D0p</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/pcmC0D2c</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Power Management">pm</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of multimedia"><tr><td class="sub-first"> driver</td><td>=</td><td>snd_hda_intel</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of multimedia"><tr><td class="sub-first"> irq</td><td>:</td><td>28</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>fcffc000-fcffffff</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:0</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">HDA Intel Front Mic</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input12</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event9</div></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:1</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">HDA Intel Rear Mic</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input13</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event10</div></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:2</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">HDA Intel Line</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input14</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event11</div></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:3"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:3</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">HDA Intel Line Out</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input15</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event12</div></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:4"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:4</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">HDA Intel Front Headphone</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">4</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input16</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event13</div></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pci:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pci:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">PCI bridge</td></tr> <tr><td class="first">product: </td><td class="second">NM10/ICH7 Family PCI Express Port 1</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1c</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1c.0</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pci</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="Power Management">pm</dfn> <dfn title="">normal_decode</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pci:1"><tr><td class="sub-first"> driver</td><td>=</td><td>pcieport</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of pci:1"><tr><td class="sub-first"> irq</td><td>:</td><td>25</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>1000(size=4096)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>c0000000-c01fffff</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>c0200000(size=2097152)</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pci:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pci:2</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">PCI bridge</td></tr> <tr><td class="first">product: </td><td class="second">NM10/ICH7 Family PCI Express Port 2</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1c.1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1c.1</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pci</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="Power Management">pm</dfn> <dfn title="">normal_decode</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pci:2"><tr><td class="sub-first"> driver</td><td>=</td><td>pcieport</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of pci:2"><tr><td class="sub-first"> irq</td><td>:</td><td>26</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>e000(size=4096)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>feb00000-febfffff</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>fbf00000(size=1048576)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of network"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">network</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Ethernet interface</td></tr> <tr><td class="first">product: </td><td class="second">RTL810xE PCI Express Fast Ethernet controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Realtek Semiconductor Co., Ltd.</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:03:00.0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">ens33</div></td></tr> <tr><td class="first">version: </td><td class="second">02</td></tr> <tr><td class="first">serial: </td><td class="second">00:26:55:47:10:07</td></tr> <tr><td class="first">size: </td><td class="second">100Mbit/s</td></tr> <tr><td class="first">capacity: </td><td class="second">100Mbit/s</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Power Management">pm</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="MSI-X">msix</dfn> <dfn title="Vital Product Data">vpd</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> <dfn title="extension ROM">rom</dfn> <dfn title="">ethernet</dfn> <dfn title="Physical interface">physical</dfn> <dfn title="twisted pair">tp</dfn> <dfn title="Media Independant Interface">mii</dfn> <dfn title="10Mbit/s">10bt</dfn> <dfn title="10Mbit/s (full duplex)">10bt-fd</dfn> <dfn title="100Mbit/s">100bt</dfn> <dfn title="100Mbit/s (full duplex)">100bt-fd</dfn> <dfn title="Auto-negotiation">autonegotiation</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of network"><tr><td class="sub-first"> autonegotiation</td><td>=</td><td>on</td></tr><tr><td class="sub-first"> broadcast</td><td>=</td><td>yes</td></tr><tr><td class="sub-first"> driver</td><td>=</td><td>r8169</td></tr><tr><td class="sub-first"> driverversion</td><td>=</td><td>4.18.0-372.26.1.el8_6.x86_64</td></tr><tr><td class="sub-first"> duplex</td><td>=</td><td>full</td></tr><tr><td class="sub-first"> ip</td><td>=</td><td>192.168.1.73</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr><tr><td class="sub-first"> link</td><td>=</td><td>yes</td></tr><tr><td class="sub-first"> multicast</td><td>=</td><td>yes</td></tr><tr><td class="sub-first"> port</td><td>=</td><td>MII</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>100Mbit/s</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of network"><tr><td class="sub-first"> irq</td><td>:</td><td>17</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>e800(size=256)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>febff000-febfffff</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>fbff0000-fbffffff</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>febc0000-febdffff</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">NM10/ICH7 Family USB UHCI Controller #1</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1d</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1d.0</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Universal Host Controller Interface (USB1)">uhci</dfn> <dfn title="bus mastering">bus_master</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:0"><tr><td class="sub-first"> driver</td><td>=</td><td>uhci_hcd</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:0"><tr><td class="sub-first"> irq</td><td>:</td><td>23</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>cc00(size=32)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">UHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb2</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 1.1">usb-1.10</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>2</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>12Mbit/s</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">NM10/ICH7 Family USB UHCI Controller #2</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1d.1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1d.1</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Universal Host Controller Interface (USB1)">uhci</dfn> <dfn title="bus mastering">bus_master</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:1"><tr><td class="sub-first"> driver</td><td>=</td><td>uhci_hcd</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:1"><tr><td class="sub-first"> irq</td><td>:</td><td>19</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>c880(size=32)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">UHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb3</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 1.1">usb-1.10</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>2</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>12Mbit/s</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Mouse</td></tr> <tr><td class="first">product: </td><td class="second">Logitech USB Optical Mouse</td></tr> <tr><td class="first">vendor: </td><td class="second">Logitech</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@3:1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input5</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/mouse0</div></td></tr> <tr><td class="first">version: </td><td class="second">43.01</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 2.0">usb-2.00</dfn> <dfn title="USB">usb</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb"><tr><td class="sub-first"> driver</td><td>=</td><td>usbhid</td></tr><tr><td class="sub-first"> maxpower</td><td>=</td><td>100mA</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>1Mbit/s</td></tr></table></td></tr> </tbody> </table></div> </div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:2</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">NM10/ICH7 Family USB UHCI Controller #3</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1d.2</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1d.2</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Universal Host Controller Interface (USB1)">uhci</dfn> <dfn title="bus mastering">bus_master</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:2"><tr><td class="sub-first"> driver</td><td>=</td><td>uhci_hcd</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:2"><tr><td class="sub-first"> irq</td><td>:</td><td>18</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>c800(size=32)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">UHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@4</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb4</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 1.1">usb-1.10</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>2</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>12Mbit/s</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:3"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:3</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">NM10/ICH7 Family USB UHCI Controller #4</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1d.3</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1d.3</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Universal Host Controller Interface (USB1)">uhci</dfn> <dfn title="bus mastering">bus_master</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:3"><tr><td class="sub-first"> driver</td><td>=</td><td>uhci_hcd</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:3"><tr><td class="sub-first"> irq</td><td>:</td><td>16</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>c480(size=32)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">UHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@5</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb5</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 1.1">usb-1.10</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>2</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>12Mbit/s</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:4"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:4</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">NM10/ICH7 Family USB2 EHCI Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1d.7</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1d.7</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Power Management">pm</dfn> <dfn title="Debug port">debug</dfn> <dfn title="Enhanced Host Controller Interface (USB2)">ehci</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:4"><tr><td class="sub-first"> driver</td><td>=</td><td>ehci-pci</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:4"><tr><td class="sub-first"> irq</td><td>:</td><td>23</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>fcffbc00-fcffbfff</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">EHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 ehci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb1</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 2.0">usb-2.00</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>8</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>480Mbit/s</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB hub</td></tr> <tr><td class="first">product: </td><td class="second">USB2.1 Hub</td></tr> <tr><td class="first">vendor: </td><td class="second">GenesysLogic</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">4</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@1:4</div></td></tr> <tr><td class="first">version: </td><td class="second">68.35</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">usb-2.10</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:0"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>4</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>480Mbit/s</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Keyboard</td></tr> <tr><td class="first">product: </td><td class="second">USB Keyboard Consumer Control</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@1:4.3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input6</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input6::capslock</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input6::numlock</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input6::scrolllock</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input7</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event4</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input8</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event5</div></td></tr> <tr><td class="first">version: </td><td class="second">3.10</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 1.1">usb-1.10</dfn> <dfn title="USB">usb</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb"><tr><td class="sub-first"> driver</td><td>=</td><td>usbhid</td></tr><tr><td class="sub-first"> maxpower</td><td>=</td><td>100mA</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>1Mbit/s</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Mass storage device</td></tr> <tr><td class="first">product: </td><td class="second">Mass Storage Device</td></tr> <tr><td class="first">vendor: </td><td class="second">Generic</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">7</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@1:7</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">scsi1</div></td></tr> <tr><td class="first">version: </td><td class="second">1.00</td></tr> <tr><td class="first">serial: </td><td class="second">058F63666471</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 2.0">usb-2.00</dfn> <dfn title="SCSI">scsi</dfn> <dfn title="Emulated device">emulated</dfn> <dfn title="SCSI host adapter">scsi-host</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:1"><tr><td class="sub-first"> driver</td><td>=</td><td>usb-storage</td></tr><tr><td class="sub-first"> maxpower</td><td>=</td><td>100mA</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>480Mbit/s</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of disk"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">disk</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">SCSI Disk</td></tr> <tr><td class="first">product: </td><td class="second">Flash Reader</td></tr> <tr><td class="first">vendor: </td><td class="second">Multi</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0.0.0</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@1:0.0.0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sdd</div></td></tr> <tr><td class="first">version: </td><td class="second">1.00</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="support is removable">removable</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of disk"><tr><td class="sub-first"> logicalsectorsize</td><td>=</td><td>512</td></tr><tr><td class="sub-first"> sectorsize</td><td>=</td><td>512</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of medium"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">medium</div></td></tr></thead> <tbody> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sdd</div></td></tr> </tbody> </table></div> </div> </div> </div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pci:3"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pci:3</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">PCI bridge</td></tr> <tr><td class="first">product: </td><td class="second">82801 PCI Bridge</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1e</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1e.0</div></td></tr> <tr><td class="first">version: </td><td class="second">e1</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pci</dfn> <dfn title="">subtractive_decode</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of isa"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">isa</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">ISA bridge</td></tr> <tr><td class="first">product: </td><td class="second">82801GB/GR (ICH7 Family) LPC Interface Bridge</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1f</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1f.0</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">isa</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of isa"><tr><td class="sub-first"> driver</td><td>=</td><td>lpc_ich</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of isa"><tr><td class="sub-first"> irq</td><td>:</td><td>0</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:00"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:00</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0c01</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:00"><tr><td class="sub-first"> driver</td><td>=</td><td>system</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:01"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:01</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0b00</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:01"><tr><td class="sub-first"> driver</td><td>=</td><td>rtc_cmos</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:02"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:02</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0c02</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">2</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:02"><tr><td class="sub-first"> driver</td><td>=</td><td>system</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:03"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:03</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0c02</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:03"><tr><td class="sub-first"> driver</td><td>=</td><td>system</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:04"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:04</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0c02</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">4</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:04"><tr><td class="sub-first"> driver</td><td>=</td><td>system</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:05"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:05</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0c02</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">5</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:05"><tr><td class="sub-first"> driver</td><td>=</td><td>system</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:06"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:06</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0c02</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">6</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:06"><tr><td class="sub-first"> driver</td><td>=</td><td>system</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:07"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:07</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0c01</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">7</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:07"><tr><td class="sub-first"> driver</td><td>=</td><td>system</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of ide:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">ide:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">IDE interface</td></tr> <tr><td class="first">product: </td><td class="second">82801G (ICH7 Family) IDE Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1f.1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1f.1</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">ide</dfn> <dfn title="ISA compatibility mode">isa_compat_mode</dfn> <dfn title="PCI native mode">pci_native_mode</dfn> <dfn title="bus mastering">bus_master</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of ide:0"><tr><td class="sub-first"> driver</td><td>=</td><td>ata_piix</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of ide:0"><tr><td class="sub-first"> irq</td><td>:</td><td>18</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>1f0(size=8)</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>3f6</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>170(size=8)</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>376</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>ffa0(size=16)</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of ide:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">ide:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">IDE interface</td></tr> <tr><td class="first">product: </td><td class="second">NM10/ICH7 Family SATA Controller [IDE mode]</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1f.2</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1f.2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">scsi3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">scsi4</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">66MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">ide</dfn> <dfn title="Power Management">pm</dfn> <dfn title="ISA compatibility mode">isa_compat_mode</dfn> <dfn title="PCI native mode">pci_native_mode</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> <dfn title="Emulated device">emulated</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of ide:1"><tr><td class="sub-first"> driver</td><td>=</td><td>ata_piix</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of ide:1"><tr><td class="sub-first"> irq</td><td>:</td><td>19</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>c400(size=8)</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>c080(size=4)</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>c000(size=8)</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>bc00(size=4)</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>b880(size=16)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of disk:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">disk:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">ATA Disk</td></tr> <tr><td class="first">product: </td><td class="second">Corsair Force GS</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@3:0.0.0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sda</div></td></tr> <tr><td class="first">version: </td><td class="second">5.02</td></tr> <tr><td class="first">serial: </td><td class="second">1229794200001882007E</td></tr> <tr><td class="first">size: </td><td class="second">167GiB (180GB)</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Partitioned disk">partitioned</dfn> <dfn title="MS-DOS partition table">partitioned:dos</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of disk:0"><tr><td class="sub-first"> ansiversion</td><td>=</td><td>5</td></tr><tr><td class="sub-first"> logicalsectorsize</td><td>=</td><td>512</td></tr><tr><td class="sub-first"> sectorsize</td><td>=</td><td>512</td></tr><tr><td class="sub-first"> signature</td><td>=</td><td>0001e745</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">EXT4 volume</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@3:0.0.0,1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sda1</div></td></tr> <tr><td class="first">version: </td><td class="second">1.0</td></tr> <tr><td class="first">serial: </td><td class="second">fe54ecfb-5223-4a7b-9d34-69567d3c89bf</td></tr> <tr><td class="first">size: </td><td class="second">30GiB</td></tr> <tr><td class="first">capacity: </td><td class="second">30GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="Bootable partition (active)">bootable</dfn> <dfn title="">journaled</dfn> <dfn title="Extended Attributes">extended_attributes</dfn> <dfn title="4GB+ files">large_files</dfn> <dfn title="16TB+ files">huge_files</dfn> <dfn title="directories with 65000+ subdirs">dir_nlink</dfn> <dfn title="64bit filesystem">64bit</dfn> <dfn title="extent-based allocation">extents</dfn> <dfn title="">ext4</dfn> <dfn title="EXT2/EXT3">ext2</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:0"><tr><td class="sub-first"> created</td><td>=</td><td>2022-05-25 21:52:50</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> label</td><td>=</td><td>alma8</td></tr><tr><td class="sub-first"> lastmountpoint</td><td>=</td><td>/</td></tr><tr><td class="sub-first"> modified</td><td>=</td><td>2022-09-08 20:11:31</td></tr><tr><td class="sub-first"> mounted</td><td>=</td><td>2022-09-08 20:11:32</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>clean</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">EXT4 volume</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">2</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@3:0.0.0,2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sda2</div></td></tr> <tr><td class="first">version: </td><td class="second">1.0</td></tr> <tr><td class="first">serial: </td><td class="second">17c9a2e7-dd10-4847-835b-b326d56e57df</td></tr> <tr><td class="first">size: </td><td class="second">80GiB</td></tr> <tr><td class="first">capacity: </td><td class="second">80GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="">journaled</dfn> <dfn title="Extended Attributes">extended_attributes</dfn> <dfn title="4GB+ files">large_files</dfn> <dfn title="16TB+ files">huge_files</dfn> <dfn title="directories with 65000+ subdirs">dir_nlink</dfn> <dfn title="extent-based allocation">extents</dfn> <dfn title="">ext4</dfn> <dfn title="EXT2/EXT3">ext2</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:1"><tr><td class="sub-first"> created</td><td>=</td><td>2022-05-25 21:47:28</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> lastmountpoint</td><td>=</td><td>/home</td></tr><tr><td class="sub-first"> modified</td><td>=</td><td>2022-09-08 20:21:02</td></tr><tr><td class="sub-first"> mounted</td><td>=</td><td>2022-09-08 20:11:34</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>clean</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:2</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Linux filesystem partition</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@3:0.0.0,3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sda3</div></td></tr> <tr><td class="first">capacity: </td><td class="second">49GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:3"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:3</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Linux swap volume</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">4</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@3:0.0.0,4</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sda4</div></td></tr> <tr><td class="first">version: </td><td class="second">1</td></tr> <tr><td class="first">serial: </td><td class="second">867f04f8-e012-4e98-9b38-9101ac01050c</td></tr> <tr><td class="first">size: </td><td class="second">8GiB</td></tr> <tr><td class="first">capacity: </td><td class="second">8GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="No filesystem">nofs</dfn> <dfn title="Linux swap">swap</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:3"><tr><td class="sub-first"> filesystem</td><td>=</td><td>swap</td></tr><tr><td class="sub-first"> pagesize</td><td>=</td><td>4096</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of disk:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">disk:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">ATA Disk</td></tr> <tr><td class="first">product: </td><td class="second">WDC WD3200AAJS-6</td></tr> <tr><td class="first">vendor: </td><td class="second">Western Digital</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0.1.0</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@3:0.1.0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sdb</div></td></tr> <tr><td class="first">version: </td><td class="second">3E02</td></tr> <tr><td class="first">serial: </td><td class="second">WD-WMAV2K464514</td></tr> <tr><td class="first">size: </td><td class="second">298GiB (320GB)</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Partitioned disk">partitioned</dfn> <dfn title="MS-DOS partition table">partitioned:dos</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of disk:1"><tr><td class="sub-first"> ansiversion</td><td>=</td><td>5</td></tr><tr><td class="sub-first"> logicalsectorsize</td><td>=</td><td>512</td></tr><tr><td class="sub-first"> sectorsize</td><td>=</td><td>512</td></tr><tr><td class="sub-first"> signature</td><td>=</td><td>17cf17ce</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Windows NTFS volume</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@3:0.1.0,1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sdb1</div></td></tr> <tr><td class="first">version: </td><td class="second">3.1</td></tr> <tr><td class="first">serial: </td><td class="second">bad6-504a</td></tr> <tr><td class="first">size: </td><td class="second">98MiB</td></tr> <tr><td class="first">capacity: </td><td class="second">100MiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="Bootable partition (active)">bootable</dfn> <dfn title="Windows NTFS">ntfs</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:0"><tr><td class="sub-first"> clustersize</td><td>=</td><td>4096</td></tr><tr><td class="sub-first"> created</td><td>=</td><td>2016-07-30 13:16:36</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ntfs</td></tr><tr><td class="sub-first"> label</td><td>=</td><td>Réservé au système</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>clean</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Windows NTFS volume</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">2</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@3:0.1.0,2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sdb2</div></td></tr> <tr><td class="first">version: </td><td class="second">3.1</td></tr> <tr><td class="first">serial: </td><td class="second">be66c97a-896b-ee46-8cd9-0c4b8d833b8f</td></tr> <tr><td class="first">size: </td><td class="second">124GiB</td></tr> <tr><td class="first">capacity: </td><td class="second">124GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="Windows NTFS">ntfs</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:1"><tr><td class="sub-first"> clustersize</td><td>=</td><td>4096</td></tr><tr><td class="sub-first"> created</td><td>=</td><td>2016-07-30 13:17:00</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ntfs</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>clean</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:2</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Windows NTFS volume</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@3:0.1.0,3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sdb3</div></td></tr> <tr><td class="first">version: </td><td class="second">3.1</td></tr> <tr><td class="first">serial: </td><td class="second">60d6-612b</td></tr> <tr><td class="first">size: </td><td class="second">553MiB</td></tr> <tr><td class="first">capacity: </td><td class="second">581MiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="Windows NTFS">ntfs</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:2"><tr><td class="sub-first"> clustersize</td><td>=</td><td>4096</td></tr><tr><td class="sub-first"> created</td><td>=</td><td>2020-02-27 22:21:12</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ntfs</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>clean</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:3"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:3</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Windows NTFS volume</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">4</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@3:0.1.0,4</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sdb4</div></td></tr> <tr><td class="first">version: </td><td class="second">3.1</td></tr> <tr><td class="first">serial: </td><td class="second">8ea8d0c2-06a3-5a42-bf62-fde6f0722a85</td></tr> <tr><td class="first">size: </td><td class="second">173GiB</td></tr> <tr><td class="first">capacity: </td><td class="second">173GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="Windows NTFS">ntfs</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:3"><tr><td class="sub-first"> clustersize</td><td>=</td><td>4096</td></tr><tr><td class="sub-first"> created</td><td>=</td><td>2016-07-30 12:36:45</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ntfs</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>clean</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of disk:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">disk:2</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">ATA Disk</td></tr> <tr><td class="first">product: </td><td class="second">SAMSUNG HD501LJ</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@4:0.0.0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sdc</div></td></tr> <tr><td class="first">version: </td><td class="second">0-12</td></tr> <tr><td class="first">serial: </td><td class="second">S0MUJ1MPC03472</td></tr> <tr><td class="first">size: </td><td class="second">465GiB (500GB)</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Partitioned disk">partitioned</dfn> <dfn title="MS-DOS partition table">partitioned:dos</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of disk:2"><tr><td class="sub-first"> ansiversion</td><td>=</td><td>5</td></tr><tr><td class="sub-first"> logicalsectorsize</td><td>=</td><td>512</td></tr><tr><td class="sub-first"> sectorsize</td><td>=</td><td>512</td></tr><tr><td class="sub-first"> signature</td><td>=</td><td>00024267</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">EXT4 volume</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@4:0.0.0,1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sdc1</div></td></tr> <tr><td class="first">version: </td><td class="second">1.0</td></tr> <tr><td class="first">serial: </td><td class="second">9869dcf1-43a1-449f-b4d4-eae461cd5439</td></tr> <tr><td class="first">size: </td><td class="second">20GiB</td></tr> <tr><td class="first">capacity: </td><td class="second">20GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="Bootable partition (active)">bootable</dfn> <dfn title="">journaled</dfn> <dfn title="Extended Attributes">extended_attributes</dfn> <dfn title="4GB+ files">large_files</dfn> <dfn title="16TB+ files">huge_files</dfn> <dfn title="directories with 65000+ subdirs">dir_nlink</dfn> <dfn title="64bit filesystem">64bit</dfn> <dfn title="extent-based allocation">extents</dfn> <dfn title="">ext4</dfn> <dfn title="EXT2/EXT3">ext2</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:0"><tr><td class="sub-first"> created</td><td>=</td><td>2022-03-10 18:46:39</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> lastmountpoint</td><td>=</td><td>/run/media/liveuser/9869dcf1-43a1-449f-b4d4-eae461cd5439</td></tr><tr><td class="sub-first"> modified</td><td>=</td><td>2022-03-15 20:19:48</td></tr><tr><td class="sub-first"> mounted</td><td>=</td><td>2022-03-15 20:19:31</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>clean</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">EXT4 volume</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">2</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@4:0.0.0,2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sdc2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/</div></td></tr> <tr><td class="first">version: </td><td class="second">1.0</td></tr> <tr><td class="first">serial: </td><td class="second">e6869be0-8c96-4065-b37e-741dc8fdbb7b</td></tr> <tr><td class="first">size: </td><td class="second">19GiB</td></tr> <tr><td class="first">capacity: </td><td class="second">19GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="">journaled</dfn> <dfn title="Extended Attributes">extended_attributes</dfn> <dfn title="4GB+ files">large_files</dfn> <dfn title="16TB+ files">huge_files</dfn> <dfn title="directories with 65000+ subdirs">dir_nlink</dfn> <dfn title="needs recovery">recover</dfn> <dfn title="64bit filesystem">64bit</dfn> <dfn title="extent-based allocation">extents</dfn> <dfn title="">ext4</dfn> <dfn title="EXT2/EXT3">ext2</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:1"><tr><td class="sub-first"> created</td><td>=</td><td>2021-10-06 20:43:35</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> lastmountpoint</td><td>=</td><td>/</td></tr><tr><td class="sub-first"> modified</td><td>=</td><td>2022-10-23 19:24:19</td></tr><tr><td class="sub-first"> mount.fstype</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> mount.options</td><td>=</td><td>rw,relatime</td></tr><tr><td class="sub-first"> mounted</td><td>=</td><td>2022-10-23 17:24:26</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>mounted</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:2</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">EXT4 volume</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@4:0.0.0,3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sdc3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/home</div></td></tr> <tr><td class="first">version: </td><td class="second">1.0</td></tr> <tr><td class="first">serial: </td><td class="second">bcb11562-7b22-46c1-b131-872d001b1fe3</td></tr> <tr><td class="first">size: </td><td class="second">47GiB</td></tr> <tr><td class="first">capacity: </td><td class="second">47GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="">journaled</dfn> <dfn title="Extended Attributes">extended_attributes</dfn> <dfn title="4GB+ files">large_files</dfn> <dfn title="16TB+ files">huge_files</dfn> <dfn title="directories with 65000+ subdirs">dir_nlink</dfn> <dfn title="needs recovery">recover</dfn> <dfn title="extent-based allocation">extents</dfn> <dfn title="">ext4</dfn> <dfn title="EXT2/EXT3">ext2</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:2"><tr><td class="sub-first"> created</td><td>=</td><td>2015-11-13 20:08:45</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> lastmountpoint</td><td>=</td><td>/home</td></tr><tr><td class="sub-first"> modified</td><td>=</td><td>2022-10-23 17:24:31</td></tr><tr><td class="sub-first"> mount.fstype</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> mount.options</td><td>=</td><td>rw,relatime</td></tr><tr><td class="sub-first"> mounted</td><td>=</td><td>2022-10-23 17:24:31</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>mounted</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:3"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:3</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">EXT4 volume</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">4</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@4:0.0.0,4</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sdc4</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/backup</div></td></tr> <tr><td class="first">version: </td><td class="second">1.0</td></tr> <tr><td class="first">serial: </td><td class="second">3f00fe36-69cd-432c-8e75-d1821103d1b3</td></tr> <tr><td class="first">size: </td><td class="second">378GiB</td></tr> <tr><td class="first">capacity: </td><td class="second">378GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="">journaled</dfn> <dfn title="Extended Attributes">extended_attributes</dfn> <dfn title="4GB+ files">large_files</dfn> <dfn title="16TB+ files">huge_files</dfn> <dfn title="directories with 65000+ subdirs">dir_nlink</dfn> <dfn title="needs recovery">recover</dfn> <dfn title="extent-based allocation">extents</dfn> <dfn title="">ext4</dfn> <dfn title="EXT2/EXT3">ext2</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:3"><tr><td class="sub-first"> created</td><td>=</td><td>2019-03-31 18:51:41</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> label</td><td>=</td><td>backup</td></tr><tr><td class="sub-first"> lastmountpoint</td><td>=</td><td>/backup</td></tr><tr><td class="sub-first"> modified</td><td>=</td><td>2022-10-23 17:24:31</td></tr><tr><td class="sub-first"> mount.fstype</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> mount.options</td><td>=</td><td>rw,relatime</td></tr><tr><td class="sub-first"> mounted</td><td>=</td><td>2022-10-23 17:24:31</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>mounted</td></tr></table></td></tr> </tbody> </table></div> </div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of serial"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">serial</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">SMBus</td></tr> <tr><td class="first">product: </td><td class="second">NM10/ICH7 Family SMBus Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1f.3</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1f.3</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of serial"><tr><td class="sub-first"> driver</td><td>=</td><td>i801_smbus</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of serial"><tr><td class="sub-first"> irq</td><td>:</td><td>19</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>400(size=32)</td></tr></table></td></tr> </tbody> </table></div> </div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:0</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">Power Button</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event0</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">platform</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:1</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">Power Button</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event1</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">platform</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:2</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PC Speaker</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input9</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event6</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="ISA bus">isa</dfn> </td></tr> </tbody> </table></div> </div> </body> </html> Compaq-lshw.html (114,541 bytes) Fujitsu-S7220-lshw.txt (27,985 bytes) deyme9 description: Notebook product: LIFEBOOK S7220 vendor: FUJITSU SIEMENS version: S7220 serial: YKKF039482 width: 64 bits capabilities: smbios-2.4 dmi-2.4 smp vsyscall32 configuration: administrator_password=disabled boot=normal chassis=notebook keyboard_password=disabled power-on_password=disabled uuid=726799ba-90ad-de11-b625-00232689a153 -core description: Motherboard product: FJNB1E7 vendor: FUJITSU physical id: 0 version: 1PCP389403-01 serial: SFJ309340365BN0N slot: SMI:B2 -firmware description: BIOS vendor: FUJITSU // Phoenix Technologies Ltd. physical id: 0 version: Version 1.15 date: 08/21/2009 size: 128KiB capacity: 2MiB capabilities: pci pcmcia pnp upgrade shadowing cdboot bootselect edd int13floppy720 int5printscreen int9keyboard int14serial int17printer int10video acpi usb biosbootspecification netboot -cpu description: CPU product: Intel(R) Core(TM)2 Duo CPU P8700 @ 2.53GHz vendor: Intel Corp. physical id: 4 bus info: cpu@0 version: 6.23.10 slot: Onboard size: 2571MHz width: 64 bits clock: 266MHz capabilities: fpu fpu_exception wp vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ht tm pbe syscall nx x86-64 constant_tsc arch_perfmon pebs bts rep_good nopl cpuid aperfmperf pni dtes64 monitor ds_cpl vmx smx est tm2 ssse3 cx16 xtpr pdcm sse4_1 xsave lahf_lm pti tpr_shadow vnmi flexpriority vpid dtherm ida cpufreq configuration: microcode=2571 -cache:0 description: L1 cache physical id: 8 slot: L1 Cache size: 128KiB capacity: 128KiB capabilities: internal write-back configuration: level=1 -cache:1 description: L2 cache physical id: 9 slot: L2 Cache size: 3MiB capacity: 3MiB capabilities: pipeline-burst synchronous internal write-back unified configuration: level=2 -memory description: System Memory physical id: f slot: System board or motherboard size: 4GiB -bank:0 description: SODIMM Synchronous 533 MHz (1,9 ns) product: M471B5673EH1-CF8 vendor: Samsung physical id: 0 serial: 9364CCAD slot: DDRIII 1 size: 2GiB width: 64 bits clock: 533MHz (1.9ns) -bank:1 description: SODIMM Synchronous 533 MHz (1,9 ns) product: HMT125S6TFR8C-H9 vendor: Hynix Semiconductor (Hyundai Electronics) physical id: 1 serial: 556188AC slot: DDRIII 2 size: 2GiB width: 64 bits clock: 533MHz (1.9ns) -pci description: Host bridge product: Mobile 4 Series Chipset Memory Controller Hub vendor: Intel Corporation physical id: 100 bus info: pci@0000:00:00.0 version: 07 width: 32 bits clock: 33MHz -display:0 description: VGA compatible controller product: Mobile 4 Series Chipset Integrated Graphics Controller vendor: Intel Corporation physical id: 2 bus info: pci@0000:00:02.0 logical name: /dev/fb0 version: 07 width: 64 bits clock: 33MHz capabilities: msi pm vga_controller bus_master cap_list fb configuration: depth=32 driver=i915 latency=0 resolution=1280,800 resources: irq:16 memory:f2000000-f23fffff memory:d0000000-dfffffff ioport:1800(size=8) memory:c0000-dffff -display:1 UNCLAIMED description: Display controller product: Mobile 4 Series Chipset Integrated Graphics Controller vendor: Intel Corporation physical id: 2.1 bus info: pci@0000:00:02.1 version: 07 width: 64 bits clock: 33MHz capabilities: pm bus_master cap_list configuration: latency=0 resources: memory:f2400000-f24fffff -usb:0 description: USB controller product: 82801I (ICH9 Family) USB UHCI Controller #4 vendor: Intel Corporation physical id: 1a bus info: pci@0000:00:1a.0 version: 03 width: 32 bits clock: 33MHz capabilities: uhci bus_master cap_list configuration: driver=uhci_hcd latency=0 resources: irq:16 ioport:1820(size=32) -usbhost product: UHCI Host Controller vendor: Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd physical id: 1 bus info: usb@3 logical name: usb3 version: 4.18 capabilities: usb-1.10 configuration: driver=hub slots=2 speed=12Mbit/s -usb:1 description: USB controller product: 82801I (ICH9 Family) USB UHCI Controller #5 vendor: Intel Corporation physical id: 1a.1 bus info: pci@0000:00:1a.1 version: 03 width: 32 bits clock: 33MHz capabilities: uhci bus_master cap_list configuration: driver=uhci_hcd latency=0 resources: irq:17 ioport:1840(size=32) -usbhost product: UHCI Host Controller vendor: Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd physical id: 1 bus info: usb@4 logical name: usb4 version: 4.18 capabilities: usb-1.10 configuration: driver=hub slots=2 speed=12Mbit/s -usb description: Keyboard product: USB Receiver vendor: Logitech physical id: 1 bus info: usb@4:1 version: 12.11 capabilities: usb-2.00 configuration: driver=usbhid maxpower=98mA speed=12Mbit/s -input product: Logitech M705 physical id: 0 logical name: input23 logical name: /dev/input/event6 logical name: /dev/input/mouse1 capabilities: usb -usb:2 description: USB controller product: 82801I (ICH9 Family) USB UHCI Controller #6 vendor: Intel Corporation physical id: 1a.2 bus info: pci@0000:00:1a.2 version: 03 width: 32 bits clock: 33MHz capabilities: uhci bus_master cap_list configuration: driver=uhci_hcd latency=0 resources: irq:18 ioport:1860(size=32) -usbhost product: UHCI Host Controller vendor: Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd physical id: 1 bus info: usb@5 logical name: usb5 version: 4.18 capabilities: usb-1.10 configuration: driver=hub slots=2 speed=12Mbit/s -usb:3 description: USB controller product: 82801I (ICH9 Family) USB2 EHCI Controller #2 vendor: Intel Corporation physical id: 1a.7 bus info: pci@0000:00:1a.7 version: 03 width: 32 bits clock: 33MHz capabilities: pm debug ehci bus_master cap_list configuration: driver=ehci-pci latency=0 resources: irq:18 memory:f2a04000-f2a043ff -usbhost product: EHCI Host Controller vendor: Linux 4.18.0-372.26.1.el8_6.x86_64 ehci_hcd physical id: 1 bus info: usb@1 logical name: usb1 version: 4.18 capabilities: usb-2.00 configuration: driver=hub slots=6 speed=480Mbit/s -multimedia description: Audio device product: 82801I (ICH9 Family) HD Audio Controller vendor: Intel Corporation physical id: 1b bus info: pci@0000:00:1b.0 logical name: card0 logical name: /dev/snd/controlC0 logical name: /dev/snd/hwC0D0 logical name: /dev/snd/hwC0D1 logical name: /dev/snd/pcmC0D0c logical name: /dev/snd/pcmC0D0p version: 03 width: 64 bits clock: 33MHz capabilities: pm msi pciexpress bus_master cap_list configuration: driver=snd_hda_intel latency=0 resources: irq:24 memory:f2a00000-f2a03fff -input:0 product: HDA Intel Dock Mic physical id: 0 logical name: input26 logical name: /dev/input/event10 -input:1 product: HDA Intel Mic physical id: 1 logical name: input27 logical name: /dev/input/event11 -input:2 product: HDA Intel Dock Line Out physical id: 2 logical name: input28 logical name: /dev/input/event12 -input:3 product: HDA Intel Front Headphone physical id: 3 logical name: input29 logical name: /dev/input/event13 -pci:0 description: PCI bridge product: 82801I (ICH9 Family) PCI Express Port 1 vendor: Intel Corporation physical id: 1c bus info: pci@0000:00:1c.0 version: 03 width: 32 bits clock: 33MHz capabilities: pci pciexpress msi pm normal_decode bus_master cap_list configuration: driver=pcieport resources: irq:17 ioport:2000(size=4096) memory:f2500000-f25fffff ioport:c0000000(size=2097152) -network UNCLAIMED description: Ethernet controller product: 88E8055 PCI-E Gigabit Ethernet Controller vendor: Marvell Technology Group Ltd. physical id: 0 bus info: pci@0000:08:00.0 version: 14 width: 64 bits clock: 33MHz capabilities: pm vpd msi pciexpress bus_master cap_list configuration: latency=0 resources: memory:f2500000-f2503fff ioport:2000(size=256) memory:f2520000-f253ffff -pci:1 description: PCI bridge product: 82801I (ICH9 Family) PCI Express Port 2 vendor: Intel Corporation physical id: 1c.1 bus info: pci@0000:00:1c.1 version: 03 width: 32 bits clock: 33MHz capabilities: pci pciexpress msi pm normal_decode bus_master cap_list configuration: driver=pcieport resources: irq:16 ioport:3000(size=4096) memory:f0000000-f1ffffff ioport:c0200000(size=2097152) -pci:2 description: PCI bridge product: 82801I (ICH9 Family) PCI Express Port 4 vendor: Intel Corporation physical id: 1c.3 bus info: pci@0000:00:1c.3 version: 03 width: 32 bits clock: 33MHz capabilities: pci pciexpress msi pm normal_decode bus_master cap_list configuration: driver=pcieport resources: irq:19 ioport:4000(size=4096) memory:f2600000-f26fffff ioport:c0400000(size=2097152) -network description: Ethernet interface product: Ultimate N WiFi Link 5300 vendor: Intel Corporation physical id: 0 bus info: pci@0000:20:00.0 logical name: wlp32s0 version: 00 serial: 00:21:6a:73:7d:4a width: 64 bits clock: 33MHz capabilities: pm msi pciexpress bus_master cap_list ethernet physical configuration: broadcast=yes driver=iwlwifi driverversion=4.18.0-372.26.1.el8_6.x86_64 firmware=8.83.5.1 build 33692 5000-5.uco ip=192.168.1.89 latency=0 link=yes multicast=yes resources: irq:25 memory:f2600000-f2601fff -usb:4 description: USB controller product: 82801I (ICH9 Family) USB UHCI Controller #1 vendor: Intel Corporation physical id: 1d bus info: pci@0000:00:1d.0 version: 03 width: 32 bits clock: 33MHz capabilities: uhci bus_master cap_list configuration: driver=uhci_hcd latency=0 resources: irq:23 ioport:1880(size=32) -usbhost product: UHCI Host Controller vendor: Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd physical id: 1 bus info: usb@6 logical name: usb6 version: 4.18 capabilities: usb-1.10 configuration: driver=hub slots=2 speed=12Mbit/s -usb:5 description: USB controller product: 82801I (ICH9 Family) USB UHCI Controller #2 vendor: Intel Corporation physical id: 1d.1 bus info: pci@0000:00:1d.1 version: 03 width: 32 bits clock: 33MHz capabilities: uhci bus_master cap_list configuration: driver=uhci_hcd latency=0 resources: irq:19 ioport:18a0(size=32) -usbhost product: UHCI Host Controller vendor: Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd physical id: 1 bus info: usb@7 logical name: usb7 version: 4.18 capabilities: usb-1.10 configuration: driver=hub slots=2 speed=12Mbit/s -usb:6 description: USB controller product: 82801I (ICH9 Family) USB UHCI Controller #3 vendor: Intel Corporation physical id: 1d.2 bus info: pci@0000:00:1d.2 version: 03 width: 32 bits clock: 33MHz capabilities: uhci bus_master cap_list configuration: driver=uhci_hcd latency=0 resources: irq:18 ioport:18c0(size=32) -usbhost product: UHCI Host Controller vendor: Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd physical id: 1 bus info: usb@8 logical name: usb8 version: 4.18 capabilities: usb-1.10 configuration: driver=hub slots=2 speed=12Mbit/s -usb:7 description: USB controller product: 82801I (ICH9 Family) USB2 EHCI Controller #1 vendor: Intel Corporation physical id: 1d.7 bus info: pci@0000:00:1d.7 version: 03 width: 32 bits clock: 33MHz capabilities: pm debug ehci bus_master cap_list configuration: driver=ehci-pci latency=0 resources: irq:23 memory:f2a04400-f2a047ff -usbhost product: EHCI Host Controller vendor: Linux 4.18.0-372.26.1.el8_6.x86_64 ehci_hcd physical id: 1 bus info: usb@2 logical name: usb2 version: 4.18 capabilities: usb-2.00 configuration: driver=hub slots=6 speed=480Mbit/s -pci:3 description: PCI bridge product: 82801 Mobile PCI Bridge vendor: Intel Corporation physical id: 1e bus info: pci@0000:00:1e.0 version: 93 width: 32 bits clock: 33MHz capabilities: pci subtractive_decode bus_master cap_list resources: ioport:5000(size=4096) memory:f2700000-f27fffff -pcmcia:0 description: CardBus bridge product: OZ711SP1 Memory CardBus Controller vendor: O2 Micro, Inc. physical id: 3 bus info: pci@0000:38:03.0 version: 01 width: 32 bits clock: 33MHz capabilities: pcmcia bus_master cap_list configuration: driver=yenta_cardbus latency=176 maxlatency=5 mingnt=192 resources: irq:16 memory:c4000000-c4000fff ioport:5000(size=256) ioport:5400(size=256) memory:c0800000-c0bfffff memory:f8000000-fbffffff -pcmcia:1 description: CardBus bridge product: OZ711SP1 Memory CardBus Controller vendor: O2 Micro, Inc. physical id: 3.1 bus info: pci@0000:38:03.1 version: 01 width: 32 bits clock: 33MHz capabilities: pcmcia bus_master cap_list configuration: driver=yenta_cardbus latency=176 maxlatency=5 mingnt=128 resources: irq:16 memory:c8000000-c8000fff ioport:5800(size=256) ioport:5c00(size=256) memory:f4000000-f7ffffff memory:cc000000-cfffffff -generic description: MMC Host product: Integrated MMC/SD Controller vendor: O2 Micro, Inc. physical id: 3.2 bus info: pci@0000:38:03.2 logical name: mmc0 version: 02 width: 32 bits clock: 33MHz capabilities: pm bus_master cap_list configuration: driver=sdhci-pci latency=32 resources: irq:16 memory:f2700000-f27000ff -storage UNCLAIMED description: Mass storage controller product: Integrated MS/xD Controller vendor: O2 Micro, Inc. physical id: 3.3 bus info: pci@0000:38:03.3 version: 01 width: 32 bits clock: 33MHz capabilities: storage pm cap_list configuration: latency=32 resources: memory:f2701000-f2701fff -isa description: ISA bridge product: ICH9M LPC Interface Controller vendor: Intel Corporation physical id: 1f bus info: pci@0000:00:1f.0 version: 03 width: 32 bits clock: 33MHz capabilities: isa bus_master cap_list configuration: driver=lpc_ich latency=0 resources: irq:0 -pnp00:00 product: PnP device PNP0c02 physical id: 0 capabilities: pnp configuration: driver=system -pnp00:01 product: PnP device PNP0c02 physical id: 1 capabilities: pnp configuration: driver=system -pnp00:02 product: PnP device PNP0303 physical id: 2 capabilities: pnp configuration: driver=i8042 kbd -pnp00:03 product: PnP device PNP0f13 physical id: 3 capabilities: pnp configuration: driver=i8042 aux -pnp00:04 product: PnP device PNP0b00 physical id: 4 capabilities: pnp configuration: driver=rtc_cmos -pnp00:05 product: PnP device PNP0103 physical id: 5 capabilities: pnp configuration: driver=system -pnp00:06 product: PnP device PNP0501 physical id: 6 capabilities: pnp configuration: driver=serial -pnp00:07 product: PnP device PNP0400 physical id: 7 capabilities: pnp configuration: driver=parport_pc -ide description: IDE interface product: 82801IBM/IEM (ICH9M/ICH9M-E) 2 port SATA Controller [IDE mode] vendor: Intel Corporation physical id: 1f.2 bus info: pci@0000:00:1f.2 logical name: scsi0 logical name: scsi1 version: 03 width: 32 bits clock: 66MHz capabilities: ide pm isa_compat_mode pci_native_mode bus_master cap_list emulated configuration: driver=ata_piix latency=0 resources: irq:19 ioport:1f0(size=8) ioport:3f6 ioport:170(size=8) ioport:376 ioport:18e0(size=16) ioport:1810(size=16) -disk description: ATA Disk product: KINGSTON SNV425S physical id: 0 bus info: scsi@0:0.0.0 logical name: /dev/sda version: 126a serial: 07NA30024592 size: 119GiB (128GB) capabilities: partitioned partitioned:dos configuration: ansiversion=5 logicalsectorsize=512 sectorsize=512 signature=d82fd2ea -volume:0 description: EXT4 volume vendor: Linux physical id: 1 bus info: scsi@0:0.0.0,1 logical name: /dev/sda1 version: 1.0 serial: 83958e06-6db9-4486-abcb-787a96e2eee2 size: 20GiB capacity: 20GiB capabilities: primary bootable journaled extended_attributes large_files huge_files dir_nlink 64bit extents ext4 ext2 initialized configuration: created=2022-02-12 18:35:45 filesystem=ext4 lastmountpoint=/bis modified=2022-10-07 22:34:51 mounted=2022-10-07 22:33:05 state=clean -volume:1 description: EXT4 volume vendor: Linux physical id: 2 bus info: scsi@0:0.0.0,2 logical name: /dev/sda2 logical name: / version: 1.0 serial: a9712b0e-363c-4a50-b391-3b3c496f57ab size: 16GiB capacity: 16GiB capabilities: primary journaled extended_attributes large_files huge_files dir_nlink recover 64bit extents ext4 ext2 initialized configuration: created=2021-09-22 22:41:25 filesystem=ext4 lastmountpoint=/ modified=2022-10-23 17:14:14 mount.fstype=ext4 mount.options=rw,noatime mounted=2022-10-23 17:14:16 state=mounted -volume:2 description: EXT4 volume vendor: Linux physical id: 3 bus info: scsi@0:0.0.0,3 logical name: /dev/sda3 logical name: /home version: 1.0 serial: 7c1ac7d8-45b3-48a4-85b3-8500258d3311 size: 77GiB capacity: 77GiB capabilities: primary journaled extended_attributes large_files huge_files dir_nlink recover 64bit extents ext4 ext2 initialized configuration: created=2019-11-13 22:35:00 filesystem=ext4 lastmountpoint=/home modified=2022-10-23 17:14:19 mount.fstype=ext4 mount.options=rw,noatime mounted=2022-10-23 17:14:19 state=mounted -volume:3 description: Extended partition physical id: 4 bus info: scsi@0:0.0.0,4 logical name: /dev/sda4 size: 6391MiB capacity: 6391MiB capabilities: primary extended partitioned partitioned:extended -logicalvolume description: Linux swap volume physical id: 5 logical name: /dev/sda5 version: 1 serial: 7674fba9-96a2-4be5-aba6-2bc6491bb505 size: 6390MiB capacity: 6390MiB capabilities: nofs swap initialized configuration: filesystem=swap pagesize=4096 -cdrom description: DVD-RAM writer product: DVD RW AD-7700S vendor: Optiarc physical id: 1 bus info: scsi@1:0.0.0 logical name: /dev/cdrom logical name: /dev/sr0 version: 1.50 capabilities: removable audio cd-r cd-rw dvd dvd-r dvd-ram configuration: ansiversion=5 status=nodisc -serial description: SMBus product: 82801I (ICH9 Family) SMBus Controller vendor: Intel Corporation physical id: 1f.3 bus info: pci@0000:00:1f.3 version: 03 width: 64 bits clock: 33MHz configuration: driver=i801_smbus latency=0 resources: irq:19 memory:c0600000-c06000ff ioport:1c00(size=32) -battery description: Lithium Ion Battery product: CP345705-01 vendor: FUJITSU physical id: 1 serial: 02A-Z081105001240Z slot: Internal Battery capacity: 62640mWh configuration: voltage=10,8V -input:0 product: Lid Switch physical id: 2 logical name: input0 logical name: /dev/input/event0 capabilities: platform -input:1 product: Power Button physical id: 3 logical name: input1 logical name: /dev/input/event1 capabilities: platform -input:2 product: SynPS/2 Synaptics TouchPad physical id: 4 logical name: input12 logical name: /dev/input/event5 logical name: /dev/input/mouse0 capabilities: i8042 -input:3 product: PS/2 Generic Mouse physical id: 5 logical name: input13 logical name: /dev/input/event7 logical name: /dev/input/mouse2 capabilities: i8042 -input:4 product: Sleep Button physical id: 6 logical name: input2 logical name: /dev/input/event2 capabilities: platform -input:5 product: Fujitsu FUJ02E3 physical id: 7 logical name: input24 logical name: /dev/input/event8 capabilities: platform -input:6 product: PC Speaker physical id: 8 logical name: input25 logical name: /dev/input/event9 capabilities: isa -input:7 product: Power Button physical id: 9 logical name: input3 logical name: /dev/input/event3 capabilities: platform -input:8 product: Video Bus physical id: a logical name: input30 logical name: /dev/input/event14 capabilities: platform *-input:9 product: AT Translated Set 2 keyboard physical id: b logical name: input4 logical name: /dev/input/event4 logical name: input4::capslock logical name: input4::numlock logical name: input4::scrolllock capabilities: i8042 Fujitsu-S7220-lshw.txt (27,985 bytes) Fujitsu-S7220-lshw.html (112,381 bytes) <?xml version="1.0" encoding="utf-8"?> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html xmlns="http://www.w3.org/1999/xhtml"> <head> <meta name="generator" content="lshw-B.02.19.2" /> <style type="text/css"> .first {font-weight: bold; margin-left: none; padding-right: 1em;vertical-align: top; } .second {padding-left: 1em; width: 100%; vertical-align: center; } .id {font-family: monospace;} .indented {margin-left: 2em; border-left: dotted thin #dde; padding-bottom: 1em; } .node {border: solid thin #ffcc66; padding: 1em; background: #ffffcc; } .node-unclaimed {border: dotted thin #c3c3c3; padding: 1em; background: #fafafa; color: red; } .node-disabled {border: solid thin #f55; padding: 1em; background: #fee; color: gray; } </style> <title>deyme9</title> </head> <body> <div class="indented"> <table width="100%" class="node" summary="attributes of deyme9"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">deyme9</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Notebook</td></tr> <tr><td class="first">product: </td><td class="second">LIFEBOOK S7220</td></tr> <tr><td class="first">vendor: </td><td class="second">FUJITSU SIEMENS</td></tr> <tr><td class="first">version: </td><td class="second">S7220</td></tr> <tr><td class="first">serial: </td><td class="second">YKKF039482</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="SMBIOS version 2.4">smbios-2.4</dfn> <dfn title="DMI version 2.4">dmi-2.4</dfn> <dfn title="Symmetric Multi-Processing">smp</dfn> <dfn title="32-bit processes">vsyscall32</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of deyme9"><tr><td class="sub-first"> administrator_password</td><td>=</td><td>disabled</td></tr><tr><td class="sub-first"> boot</td><td>=</td><td>normal</td></tr><tr><td class="sub-first"> chassis</td><td>=</td><td>notebook</td></tr><tr><td class="sub-first"> keyboard_password</td><td>=</td><td>disabled</td></tr><tr><td class="sub-first"> power-on_password</td><td>=</td><td>disabled</td></tr><tr><td class="sub-first"> uuid</td><td>=</td><td>726799ba-90ad-de11-b625-00232689a153</td></tr></table></td></tr> </tbody></table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of core"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">core</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Motherboard</td></tr> <tr><td class="first">product: </td><td class="second">FJNB1E7</td></tr> <tr><td class="first">vendor: </td><td class="second">FUJITSU</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">version: </td><td class="second">1PCP389403-01</td></tr> <tr><td class="first">serial: </td><td class="second">SFJ309340365BN0N</td></tr> <tr><td class="first">slot: </td><td class="second">SMI:B2</td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of firmware"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">firmware</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">BIOS</td></tr> <tr><td class="first">vendor: </td><td class="second">FUJITSU // Phoenix Technologies Ltd.</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">version: </td><td class="second">Version 1.15</td></tr> <tr><td class="first">date: </td><td class="second">08/21/2009</td></tr> <tr><td class="first">size: </td><td class="second">128KiB</td></tr> <tr><td class="first">capacity: </td><td class="second">2MiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="PCI bus">pci</dfn> <dfn title="PCMCIA/PCCard">pcmcia</dfn> <dfn title="Plug-and-Play">pnp</dfn> <dfn title="BIOS EEPROM can be upgraded">upgrade</dfn> <dfn title="BIOS shadowing">shadowing</dfn> <dfn title="Booting from CD-ROM/DVD">cdboot</dfn> <dfn title="Selectable boot path">bootselect</dfn> <dfn title="Enhanced Disk Drive extensions">edd</dfn> <dfn title="3.5" 720KB floppy">int13floppy720</dfn> <dfn title="Print Screen key">int5printscreen</dfn> <dfn title="i8042 keyboard controller">int9keyboard</dfn> <dfn title="INT14 serial line control">int14serial</dfn> <dfn title="INT17 printer control">int17printer</dfn> <dfn title="INT10 CGA/Mono video">int10video</dfn> <dfn title="ACPI">acpi</dfn> <dfn title="USB legacy emulation">usb</dfn> <dfn title="BIOS boot specification">biosbootspecification</dfn> <dfn title="Function-key initiated network service boot">netboot</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of cpu"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">cpu</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">CPU</td></tr> <tr><td class="first">product: </td><td class="second">Intel(R) Core(TM)2 Duo CPU P8700 @ 2.53GHz</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corp.</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">4</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">cpu@0</div></td></tr> <tr><td class="first">version: </td><td class="second">6.23.10</td></tr> <tr><td class="first">slot: </td><td class="second">Onboard</td></tr> <tr><td class="first">size: </td><td class="second">2576MHz</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">266MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="mathematical co-processor">fpu</dfn> <dfn title="FPU exceptions reporting">fpu_exception</dfn> <dfn title="">wp</dfn> <dfn title="virtual mode extensions">vme</dfn> <dfn title="debugging extensions">de</dfn> <dfn title="page size extensions">pse</dfn> <dfn title="time stamp counter">tsc</dfn> <dfn title="model-specific registers">msr</dfn> <dfn title="4GB+ memory addressing (Physical Address Extension)">pae</dfn> <dfn title="machine check exceptions">mce</dfn> <dfn title="compare and exchange 8-byte">cx8</dfn> <dfn title="on-chip advanced programmable interrupt controller (APIC)">apic</dfn> <dfn title="fast system calls">sep</dfn> <dfn title="memory type range registers">mtrr</dfn> <dfn title="page global enable">pge</dfn> <dfn title="machine check architecture">mca</dfn> <dfn title="conditional move instruction">cmov</dfn> <dfn title="page attribute table">pat</dfn> <dfn title="36-bit page size extensions">pse36</dfn> <dfn title="">clflush</dfn> <dfn title="debug trace and EMON store MSRs">dts</dfn> <dfn title="thermal control (ACPI)">acpi</dfn> <dfn title="multimedia extensions (MMX)">mmx</dfn> <dfn title="fast floating point save/restore">fxsr</dfn> <dfn title="streaming SIMD extensions (SSE)">sse</dfn> <dfn title="streaming SIMD extensions (SSE2)">sse2</dfn> <dfn title="HyperThreading">ht</dfn> <dfn title="thermal interrupt and status">tm</dfn> <dfn title="pending break event">pbe</dfn> <dfn title="fast system calls">syscall</dfn> <dfn title="no-execute bit (NX)">nx</dfn> <dfn title="64bits extensions (x86-64)">x86-64</dfn> <dfn title="">constant_tsc</dfn> <dfn title="">arch_perfmon</dfn> <dfn title="">pebs</dfn> <dfn title="">bts</dfn> <dfn title="">rep_good</dfn> <dfn title="">nopl</dfn> <dfn title="">cpuid</dfn> <dfn title="">aperfmperf</dfn> <dfn title="">pni</dfn> <dfn title="">dtes64</dfn> <dfn title="">monitor</dfn> <dfn title="">ds_cpl</dfn> <dfn title="">vmx</dfn> <dfn title="">smx</dfn> <dfn title="">est</dfn> <dfn title="">tm2</dfn> <dfn title="">ssse3</dfn> <dfn title="">cx16</dfn> <dfn title="">xtpr</dfn> <dfn title="">pdcm</dfn> <dfn title="">sse4_1</dfn> <dfn title="">xsave</dfn> <dfn title="">lahf_lm</dfn> <dfn title="">pti</dfn> <dfn title="">tpr_shadow</dfn> <dfn title="">vnmi</dfn> <dfn title="">flexpriority</dfn> <dfn title="">vpid</dfn> <dfn title="">dtherm</dfn> <dfn title="">ida</dfn> <dfn title="CPU Frequency scaling">cpufreq</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of cpu"><tr><td class="sub-first"> microcode</td><td>=</td><td>2571</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of cache:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">cache:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">L1 cache</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">8</div></td></tr> <tr><td class="first">slot: </td><td class="second">L1 Cache</td></tr> <tr><td class="first">size: </td><td class="second">128KiB</td></tr> <tr><td class="first">capacity: </td><td class="second">128KiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Internal">internal</dfn> <dfn title="Write-back">write-back</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of cache:0"><tr><td class="sub-first"> level</td><td>=</td><td>1</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of cache:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">cache:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">L2 cache</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">9</div></td></tr> <tr><td class="first">slot: </td><td class="second">L2 Cache</td></tr> <tr><td class="first">size: </td><td class="second">3MiB</td></tr> <tr><td class="first">capacity: </td><td class="second">3MiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Pipeline burst">pipeline-burst</dfn> <dfn title="Synchronous">synchronous</dfn> <dfn title="Internal">internal</dfn> <dfn title="Write-back">write-back</dfn> <dfn title="Unified cache">unified</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of cache:1"><tr><td class="sub-first"> level</td><td>=</td><td>2</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of memory"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">memory</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">System Memory</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">f</div></td></tr> <tr><td class="first">slot: </td><td class="second">System board or motherboard</td></tr> <tr><td class="first">size: </td><td class="second">4GiB</td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of bank:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">bank:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">SODIMM Synchronous 533 MHz (1,9 ns)</td></tr> <tr><td class="first">product: </td><td class="second">M471B5673EH1-CF8</td></tr> <tr><td class="first">vendor: </td><td class="second">Samsung</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">serial: </td><td class="second">9364CCAD</td></tr> <tr><td class="first">slot: </td><td class="second">DDRIII 1</td></tr> <tr><td class="first">size: </td><td class="second">2GiB</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">533MHz (1.9ns)</td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of bank:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">bank:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">SODIMM Synchronous 533 MHz (1,9 ns)</td></tr> <tr><td class="first">product: </td><td class="second">HMT125S6TFR8C-H9</td></tr> <tr><td class="first">vendor: </td><td class="second">Hynix Semiconductor (Hyundai Electronics)</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">serial: </td><td class="second">556188AC</td></tr> <tr><td class="first">slot: </td><td class="second">DDRIII 2</td></tr> <tr><td class="first">size: </td><td class="second">2GiB</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">533MHz (1.9ns)</td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pci"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pci</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Host bridge</td></tr> <tr><td class="first">product: </td><td class="second">Mobile 4 Series Chipset Memory Controller Hub</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">100</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:00.0</div></td></tr> <tr><td class="first">version: </td><td class="second">07</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of display:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">display:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">VGA compatible controller</td></tr> <tr><td class="first">product: </td><td class="second">Mobile 4 Series Chipset Integrated Graphics Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">2</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:02.0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/fb0</div></td></tr> <tr><td class="first">version: </td><td class="second">07</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="Power Management">pm</dfn> <dfn title="">vga_controller</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> <dfn title="framebuffer">fb</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of display:0"><tr><td class="sub-first"> depth</td><td>=</td><td>32</td></tr><tr><td class="sub-first"> driver</td><td>=</td><td>i915</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr><tr><td class="sub-first"> resolution</td><td>=</td><td>1280,800</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of display:0"><tr><td class="sub-first"> irq</td><td>:</td><td>16</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f2000000-f23fffff</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>d0000000-dfffffff</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>1800(size=8)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>c0000-dffff</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node-unclaimed" summary="attributes of display:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">display:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Display controller</td></tr> <tr><td class="first">product: </td><td class="second">Mobile 4 Series Chipset Integrated Graphics Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">2.1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:02.1</div></td></tr> <tr><td class="first">version: </td><td class="second">07</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Power Management">pm</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of display:1"><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of display:1"><tr><td class="sub-first"> memory</td><td>:</td><td>f2400000-f24fffff</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) USB UHCI Controller #4</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1a</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1a.0</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Universal Host Controller Interface (USB1)">uhci</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:0"><tr><td class="sub-first"> driver</td><td>=</td><td>uhci_hcd</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:0"><tr><td class="sub-first"> irq</td><td>:</td><td>16</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>1820(size=32)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">UHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb3</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 1.1">usb-1.10</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>2</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>12Mbit/s</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) USB UHCI Controller #5</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1a.1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1a.1</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Universal Host Controller Interface (USB1)">uhci</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:1"><tr><td class="sub-first"> driver</td><td>=</td><td>uhci_hcd</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:1"><tr><td class="sub-first"> irq</td><td>:</td><td>17</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>1840(size=32)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">UHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@4</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb4</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 1.1">usb-1.10</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>2</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>12Mbit/s</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Keyboard</td></tr> <tr><td class="first">product: </td><td class="second">USB Receiver</td></tr> <tr><td class="first">vendor: </td><td class="second">Logitech</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@4:1</div></td></tr> <tr><td class="first">version: </td><td class="second">12.11</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 2.0">usb-2.00</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb"><tr><td class="sub-first"> driver</td><td>=</td><td>usbhid</td></tr><tr><td class="sub-first"> maxpower</td><td>=</td><td>98mA</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>12Mbit/s</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">Logitech M705</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input23</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event6</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/mouse1</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB">usb</dfn> </td></tr> </tbody> </table></div> </div> </div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:2</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) USB UHCI Controller #6</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1a.2</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1a.2</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Universal Host Controller Interface (USB1)">uhci</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:2"><tr><td class="sub-first"> driver</td><td>=</td><td>uhci_hcd</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:2"><tr><td class="sub-first"> irq</td><td>:</td><td>18</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>1860(size=32)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">UHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@5</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb5</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 1.1">usb-1.10</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>2</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>12Mbit/s</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:3"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:3</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) USB2 EHCI Controller #2</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1a.7</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1a.7</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Power Management">pm</dfn> <dfn title="Debug port">debug</dfn> <dfn title="Enhanced Host Controller Interface (USB2)">ehci</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:3"><tr><td class="sub-first"> driver</td><td>=</td><td>ehci-pci</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:3"><tr><td class="sub-first"> irq</td><td>:</td><td>18</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f2a04000-f2a043ff</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">EHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 ehci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb1</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 2.0">usb-2.00</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>6</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>480Mbit/s</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of multimedia"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">multimedia</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Audio device</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) HD Audio Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1b</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1b.0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">card0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/controlC0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/hwC0D0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/hwC0D1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/pcmC0D0c</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/snd/pcmC0D0p</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Power Management">pm</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of multimedia"><tr><td class="sub-first"> driver</td><td>=</td><td>snd_hda_intel</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of multimedia"><tr><td class="sub-first"> irq</td><td>:</td><td>24</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f2a00000-f2a03fff</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:0</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">HDA Intel Dock Mic</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input26</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event10</div></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:1</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">HDA Intel Mic</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input27</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event11</div></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:2</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">HDA Intel Dock Line Out</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input28</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event12</div></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:3"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:3</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">HDA Intel Front Headphone</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input29</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event13</div></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pci:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pci:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">PCI bridge</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) PCI Express Port 1</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1c</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1c.0</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pci</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="Power Management">pm</dfn> <dfn title="">normal_decode</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pci:0"><tr><td class="sub-first"> driver</td><td>=</td><td>pcieport</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of pci:0"><tr><td class="sub-first"> irq</td><td>:</td><td>17</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>2000(size=4096)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f2500000-f25fffff</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>c0000000(size=2097152)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node-unclaimed" summary="attributes of network"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">network</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Ethernet controller</td></tr> <tr><td class="first">product: </td><td class="second">88E8055 PCI-E Gigabit Ethernet Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Marvell Technology Group Ltd.</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:08:00.0</div></td></tr> <tr><td class="first">version: </td><td class="second">14</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Power Management">pm</dfn> <dfn title="Vital Product Data">vpd</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of network"><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of network"><tr><td class="sub-first"> memory</td><td>:</td><td>f2500000-f2503fff</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>2000(size=256)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f2520000-f253ffff</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pci:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pci:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">PCI bridge</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) PCI Express Port 2</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1c.1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1c.1</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pci</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="Power Management">pm</dfn> <dfn title="">normal_decode</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pci:1"><tr><td class="sub-first"> driver</td><td>=</td><td>pcieport</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of pci:1"><tr><td class="sub-first"> irq</td><td>:</td><td>16</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>3000(size=4096)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f0000000-f1ffffff</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>c0200000(size=2097152)</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pci:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pci:2</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">PCI bridge</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) PCI Express Port 4</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1c.3</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1c.3</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pci</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="Power Management">pm</dfn> <dfn title="">normal_decode</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pci:2"><tr><td class="sub-first"> driver</td><td>=</td><td>pcieport</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of pci:2"><tr><td class="sub-first"> irq</td><td>:</td><td>19</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>4000(size=4096)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f2600000-f26fffff</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>c0400000(size=2097152)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of network"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">network</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Ethernet interface</td></tr> <tr><td class="first">product: </td><td class="second">Ultimate N WiFi Link 5300</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:20:00.0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">wlp32s0</div></td></tr> <tr><td class="first">version: </td><td class="second">00</td></tr> <tr><td class="first">serial: </td><td class="second">00:21:6a:73:7d:4a</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Power Management">pm</dfn> <dfn title="Message Signalled Interrupts">msi</dfn> <dfn title="PCI Express">pciexpress</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> <dfn title="">ethernet</dfn> <dfn title="Physical interface">physical</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of network"><tr><td class="sub-first"> broadcast</td><td>=</td><td>yes</td></tr><tr><td class="sub-first"> driver</td><td>=</td><td>iwlwifi</td></tr><tr><td class="sub-first"> driverversion</td><td>=</td><td>4.18.0-372.26.1.el8_6.x86_64</td></tr><tr><td class="sub-first"> firmware</td><td>=</td><td>8.83.5.1 build 33692 5000-5.uco</td></tr><tr><td class="sub-first"> ip</td><td>=</td><td>192.168.1.89</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr><tr><td class="sub-first"> link</td><td>=</td><td>yes</td></tr><tr><td class="sub-first"> multicast</td><td>=</td><td>yes</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of network"><tr><td class="sub-first"> irq</td><td>:</td><td>25</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f2600000-f2601fff</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:4"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:4</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) USB UHCI Controller #1</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1d</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1d.0</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Universal Host Controller Interface (USB1)">uhci</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:4"><tr><td class="sub-first"> driver</td><td>=</td><td>uhci_hcd</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:4"><tr><td class="sub-first"> irq</td><td>:</td><td>23</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>1880(size=32)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">UHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@6</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb6</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 1.1">usb-1.10</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>2</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>12Mbit/s</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:5"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:5</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) USB UHCI Controller #2</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1d.1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1d.1</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Universal Host Controller Interface (USB1)">uhci</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:5"><tr><td class="sub-first"> driver</td><td>=</td><td>uhci_hcd</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:5"><tr><td class="sub-first"> irq</td><td>:</td><td>19</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>18a0(size=32)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">UHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@7</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb7</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 1.1">usb-1.10</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>2</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>12Mbit/s</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:6"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:6</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) USB UHCI Controller #3</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1d.2</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1d.2</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Universal Host Controller Interface (USB1)">uhci</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:6"><tr><td class="sub-first"> driver</td><td>=</td><td>uhci_hcd</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:6"><tr><td class="sub-first"> irq</td><td>:</td><td>18</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>18c0(size=32)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">UHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 uhci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@8</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb8</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 1.1">usb-1.10</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>2</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>12Mbit/s</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usb:7"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usb:7</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">USB controller</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) USB2 EHCI Controller #1</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1d.7</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1d.7</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Power Management">pm</dfn> <dfn title="Debug port">debug</dfn> <dfn title="Enhanced Host Controller Interface (USB2)">ehci</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usb:7"><tr><td class="sub-first"> driver</td><td>=</td><td>ehci-pci</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of usb:7"><tr><td class="sub-first"> irq</td><td>:</td><td>23</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f2a04400-f2a047ff</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of usbhost"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">usbhost</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">EHCI Host Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux 4.18.0-372.26.1.el8_6.x86_64 ehci_hcd</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">usb@2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">usb2</div></td></tr> <tr><td class="first">version: </td><td class="second">4.18</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="USB 2.0">usb-2.00</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of usbhost"><tr><td class="sub-first"> driver</td><td>=</td><td>hub</td></tr><tr><td class="sub-first"> slots</td><td>=</td><td>6</td></tr><tr><td class="sub-first"> speed</td><td>=</td><td>480Mbit/s</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pci:3"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pci:3</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">PCI bridge</td></tr> <tr><td class="first">product: </td><td class="second">82801 Mobile PCI Bridge</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1e</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1e.0</div></td></tr> <tr><td class="first">version: </td><td class="second">93</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pci</dfn> <dfn title="">subtractive_decode</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of pci:3"><tr><td class="sub-first"> ioport</td><td>:</td><td>5000(size=4096)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f2700000-f27fffff</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pcmcia:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pcmcia:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">CardBus bridge</td></tr> <tr><td class="first">product: </td><td class="second">OZ711SP1 Memory CardBus Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">O2 Micro, Inc.</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:38:03.0</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="PC-Card (PCMCIA)">pcmcia</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pcmcia:0"><tr><td class="sub-first"> driver</td><td>=</td><td>yenta_cardbus</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>176</td></tr><tr><td class="sub-first"> maxlatency</td><td>=</td><td>5</td></tr><tr><td class="sub-first"> mingnt</td><td>=</td><td>192</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of pcmcia:0"><tr><td class="sub-first"> irq</td><td>:</td><td>16</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>c4000000-c4000fff</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>5000(size=256)</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>5400(size=256)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>c0800000-c0bfffff</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f8000000-fbffffff</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pcmcia:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pcmcia:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">CardBus bridge</td></tr> <tr><td class="first">product: </td><td class="second">OZ711SP1 Memory CardBus Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">O2 Micro, Inc.</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3.1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:38:03.1</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="PC-Card (PCMCIA)">pcmcia</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pcmcia:1"><tr><td class="sub-first"> driver</td><td>=</td><td>yenta_cardbus</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>176</td></tr><tr><td class="sub-first"> maxlatency</td><td>=</td><td>5</td></tr><tr><td class="sub-first"> mingnt</td><td>=</td><td>128</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of pcmcia:1"><tr><td class="sub-first"> irq</td><td>:</td><td>16</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>c8000000-c8000fff</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>5800(size=256)</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>5c00(size=256)</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f4000000-f7ffffff</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>cc000000-cfffffff</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of generic"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">generic</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">MMC Host</td></tr> <tr><td class="first">product: </td><td class="second">Integrated MMC/SD Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">O2 Micro, Inc.</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3.2</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:38:03.2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">mmc0</div></td></tr> <tr><td class="first">version: </td><td class="second">02</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Power Management">pm</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of generic"><tr><td class="sub-first"> driver</td><td>=</td><td>sdhci-pci</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>32</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of generic"><tr><td class="sub-first"> irq</td><td>:</td><td>16</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>f2700000-f27000ff</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node-unclaimed" summary="attributes of storage"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">storage</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Mass storage controller</td></tr> <tr><td class="first">product: </td><td class="second">Integrated MS/xD Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">O2 Micro, Inc.</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3.3</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:38:03.3</div></td></tr> <tr><td class="first">version: </td><td class="second">01</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">storage</dfn> <dfn title="Power Management">pm</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of storage"><tr><td class="sub-first"> latency</td><td>=</td><td>32</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of storage"><tr><td class="sub-first"> memory</td><td>:</td><td>f2701000-f2701fff</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of isa"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">isa</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">ISA bridge</td></tr> <tr><td class="first">product: </td><td class="second">ICH9M LPC Interface Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1f</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1f.0</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">isa</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of isa"><tr><td class="sub-first"> driver</td><td>=</td><td>lpc_ich</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of isa"><tr><td class="sub-first"> irq</td><td>:</td><td>0</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:00"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:00</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0c02</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:00"><tr><td class="sub-first"> driver</td><td>=</td><td>system</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:01"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:01</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0c02</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:01"><tr><td class="sub-first"> driver</td><td>=</td><td>system</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:02"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:02</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0303</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">2</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:02"><tr><td class="sub-first"> driver</td><td>=</td><td>i8042 kbd</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:03"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:03</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0f13</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:03"><tr><td class="sub-first"> driver</td><td>=</td><td>i8042 aux</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:04"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:04</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0b00</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">4</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:04"><tr><td class="sub-first"> driver</td><td>=</td><td>rtc_cmos</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:05"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:05</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0103</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">5</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:05"><tr><td class="sub-first"> driver</td><td>=</td><td>system</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:06"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:06</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0501</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">6</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:06"><tr><td class="sub-first"> driver</td><td>=</td><td>serial</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of pnp00:07"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">pnp00:07</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PnP device PNP0400</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">7</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">pnp</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of pnp00:07"><tr><td class="sub-first"> driver</td><td>=</td><td>parport_pc</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of ide"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">ide</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">IDE interface</td></tr> <tr><td class="first">product: </td><td class="second">82801IBM/IEM (ICH9M/ICH9M-E) 2 port SATA Controller [IDE mode]</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1f.2</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1f.2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">scsi0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">scsi1</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">32 bits</td></tr> <tr><td class="first">clock: </td><td class="second">66MHz</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">ide</dfn> <dfn title="Power Management">pm</dfn> <dfn title="ISA compatibility mode">isa_compat_mode</dfn> <dfn title="PCI native mode">pci_native_mode</dfn> <dfn title="bus mastering">bus_master</dfn> <dfn title="PCI capabilities listing">cap_list</dfn> <dfn title="Emulated device">emulated</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of ide"><tr><td class="sub-first"> driver</td><td>=</td><td>ata_piix</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of ide"><tr><td class="sub-first"> irq</td><td>:</td><td>19</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>1f0(size=8)</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>3f6</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>170(size=8)</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>376</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>18e0(size=16)</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>1810(size=16)</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of disk"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">disk</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">ATA Disk</td></tr> <tr><td class="first">product: </td><td class="second">KINGSTON SNV425S</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">0</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@0:0.0.0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sda</div></td></tr> <tr><td class="first">version: </td><td class="second">126a</td></tr> <tr><td class="first">serial: </td><td class="second">07NA30024592</td></tr> <tr><td class="first">size: </td><td class="second">119GiB (128GB)</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Partitioned disk">partitioned</dfn> <dfn title="MS-DOS partition table">partitioned:dos</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of disk"><tr><td class="sub-first"> ansiversion</td><td>=</td><td>5</td></tr><tr><td class="sub-first"> logicalsectorsize</td><td>=</td><td>512</td></tr><tr><td class="sub-first"> sectorsize</td><td>=</td><td>512</td></tr><tr><td class="sub-first"> signature</td><td>=</td><td>d82fd2ea</td></tr></table></td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:0</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">EXT4 volume</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@0:0.0.0,1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sda1</div></td></tr> <tr><td class="first">version: </td><td class="second">1.0</td></tr> <tr><td class="first">serial: </td><td class="second">83958e06-6db9-4486-abcb-787a96e2eee2</td></tr> <tr><td class="first">size: </td><td class="second">20GiB</td></tr> <tr><td class="first">capacity: </td><td class="second">20GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="Bootable partition (active)">bootable</dfn> <dfn title="">journaled</dfn> <dfn title="Extended Attributes">extended_attributes</dfn> <dfn title="4GB+ files">large_files</dfn> <dfn title="16TB+ files">huge_files</dfn> <dfn title="directories with 65000+ subdirs">dir_nlink</dfn> <dfn title="64bit filesystem">64bit</dfn> <dfn title="extent-based allocation">extents</dfn> <dfn title="">ext4</dfn> <dfn title="EXT2/EXT3">ext2</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:0"><tr><td class="sub-first"> created</td><td>=</td><td>2022-02-12 18:35:45</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> lastmountpoint</td><td>=</td><td>/bis</td></tr><tr><td class="sub-first"> modified</td><td>=</td><td>2022-10-07 22:34:51</td></tr><tr><td class="sub-first"> mounted</td><td>=</td><td>2022-10-07 22:33:05</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>clean</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:1</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">EXT4 volume</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">2</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@0:0.0.0,2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sda2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/</div></td></tr> <tr><td class="first">version: </td><td class="second">1.0</td></tr> <tr><td class="first">serial: </td><td class="second">a9712b0e-363c-4a50-b391-3b3c496f57ab</td></tr> <tr><td class="first">size: </td><td class="second">16GiB</td></tr> <tr><td class="first">capacity: </td><td class="second">16GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="">journaled</dfn> <dfn title="Extended Attributes">extended_attributes</dfn> <dfn title="4GB+ files">large_files</dfn> <dfn title="16TB+ files">huge_files</dfn> <dfn title="directories with 65000+ subdirs">dir_nlink</dfn> <dfn title="needs recovery">recover</dfn> <dfn title="64bit filesystem">64bit</dfn> <dfn title="extent-based allocation">extents</dfn> <dfn title="">ext4</dfn> <dfn title="EXT2/EXT3">ext2</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:1"><tr><td class="sub-first"> created</td><td>=</td><td>2021-09-22 22:41:25</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> lastmountpoint</td><td>=</td><td>/</td></tr><tr><td class="sub-first"> modified</td><td>=</td><td>2022-10-23 17:14:14</td></tr><tr><td class="sub-first"> mount.fstype</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> mount.options</td><td>=</td><td>rw,noatime</td></tr><tr><td class="sub-first"> mounted</td><td>=</td><td>2022-10-23 17:14:16</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>mounted</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:2</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">EXT4 volume</td></tr> <tr><td class="first">vendor: </td><td class="second">Linux</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@0:0.0.0,3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sda3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/home</div></td></tr> <tr><td class="first">version: </td><td class="second">1.0</td></tr> <tr><td class="first">serial: </td><td class="second">7c1ac7d8-45b3-48a4-85b3-8500258d3311</td></tr> <tr><td class="first">size: </td><td class="second">77GiB</td></tr> <tr><td class="first">capacity: </td><td class="second">77GiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="">journaled</dfn> <dfn title="Extended Attributes">extended_attributes</dfn> <dfn title="4GB+ files">large_files</dfn> <dfn title="16TB+ files">huge_files</dfn> <dfn title="directories with 65000+ subdirs">dir_nlink</dfn> <dfn title="needs recovery">recover</dfn> <dfn title="64bit filesystem">64bit</dfn> <dfn title="extent-based allocation">extents</dfn> <dfn title="">ext4</dfn> <dfn title="EXT2/EXT3">ext2</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of volume:2"><tr><td class="sub-first"> created</td><td>=</td><td>2019-11-13 22:35:00</td></tr><tr><td class="sub-first"> filesystem</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> lastmountpoint</td><td>=</td><td>/home</td></tr><tr><td class="sub-first"> modified</td><td>=</td><td>2022-10-23 17:14:19</td></tr><tr><td class="sub-first"> mount.fstype</td><td>=</td><td>ext4</td></tr><tr><td class="sub-first"> mount.options</td><td>=</td><td>rw,noatime</td></tr><tr><td class="sub-first"> mounted</td><td>=</td><td>2022-10-23 17:14:19</td></tr><tr><td class="sub-first"> state</td><td>=</td><td>mounted</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of volume:3"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">volume:3</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Extended partition</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">4</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@0:0.0.0,4</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sda4</div></td></tr> <tr><td class="first">size: </td><td class="second">6391MiB</td></tr> <tr><td class="first">capacity: </td><td class="second">6391MiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="Primary partition">primary</dfn> <dfn title="Extended partition">extended</dfn> <dfn title="Partitioned disk">partitioned</dfn> <dfn title="Extended partition">partitioned:extended</dfn> </td></tr> </tbody> </table></div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of logicalvolume"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">logicalvolume</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Linux swap volume</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">5</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sda5</div></td></tr> <tr><td class="first">version: </td><td class="second">1</td></tr> <tr><td class="first">serial: </td><td class="second">7674fba9-96a2-4be5-aba6-2bc6491bb505</td></tr> <tr><td class="first">size: </td><td class="second">6390MiB</td></tr> <tr><td class="first">capacity: </td><td class="second">6390MiB</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="No filesystem">nofs</dfn> <dfn title="Linux swap">swap</dfn> <dfn title="initialized volume">initialized</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of logicalvolume"><tr><td class="sub-first"> filesystem</td><td>=</td><td>swap</td></tr><tr><td class="sub-first"> pagesize</td><td>=</td><td>4096</td></tr></table></td></tr> </tbody> </table></div> </div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of cdrom"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">cdrom</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">DVD-RAM writer</td></tr> <tr><td class="first">product: </td><td class="second">DVD RW AD-7700S</td></tr> <tr><td class="first">vendor: </td><td class="second">Optiarc</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">scsi@1:0.0.0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/cdrom</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/sr0</div></td></tr> <tr><td class="first">version: </td><td class="second">1.50</td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="support is removable">removable</dfn> <dfn title="Audio CD playback">audio</dfn> <dfn title="CD-R burning">cd-r</dfn> <dfn title="CD-RW burning">cd-rw</dfn> <dfn title="DVD playback">dvd</dfn> <dfn title="DVD-R burning">dvd-r</dfn> <dfn title="DVD-RAM burning">dvd-ram</dfn> </td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of cdrom"><tr><td class="sub-first"> ansiversion</td><td>=</td><td>5</td></tr><tr><td class="sub-first"> status</td><td>=</td><td>nodisc</td></tr></table></td></tr> </tbody> </table></div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of serial"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">serial</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">SMBus</td></tr> <tr><td class="first">product: </td><td class="second">82801I (ICH9 Family) SMBus Controller</td></tr> <tr><td class="first">vendor: </td><td class="second">Intel Corporation</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1f.3</div></td></tr> <tr><td class="first">bus info: </td><td class="second"><div class="id">pci@0000:00:1f.3</div></td></tr> <tr><td class="first">version: </td><td class="second">03</td></tr> <tr><td class="first">width: </td><td class="second">64 bits</td></tr> <tr><td class="first">clock: </td><td class="second">33MHz</td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of serial"><tr><td class="sub-first"> driver</td><td>=</td><td>i801_smbus</td></tr><tr><td class="sub-first"> latency</td><td>=</td><td>0</td></tr></table></td></tr> <tr><td class="first">resources:</td><td class="second"><table summary="resources of serial"><tr><td class="sub-first"> irq</td><td>:</td><td>19</td></tr><tr><td class="sub-first"> memory</td><td>:</td><td>c0600000-c06000ff</td></tr><tr><td class="sub-first"> ioport</td><td>:</td><td>1c00(size=32)</td></tr></table></td></tr> </tbody> </table></div> </div> </div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of battery"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">battery</div></td></tr></thead> <tbody> <tr><td class="first">description: </td><td class="second">Lithium Ion Battery</td></tr> <tr><td class="first">product: </td><td class="second">CP345705-01</td></tr> <tr><td class="first">vendor: </td><td class="second">FUJITSU</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">1</div></td></tr> <tr><td class="first">serial: </td><td class="second">02A-Z081105001240Z</td></tr> <tr><td class="first">slot: </td><td class="second">Internal Battery</td></tr> <tr><td class="first">capacity: </td><td class="second">62640mWh</td></tr> <tr><td class="first">configuration:</td><td class="second"><table summary="configuration of battery"><tr><td class="sub-first"> voltage</td><td>=</td><td>10,8V</td></tr></table></td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:0"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:0</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">Lid Switch</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input0</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event0</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">platform</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:1"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:1</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">Power Button</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input1</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event1</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">platform</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:2"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:2</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">SynPS/2 Synaptics TouchPad</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">4</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input12</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event5</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/mouse0</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="i8042 PC AT keyboard controller">i8042</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:3"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:3</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PS/2 Generic Mouse</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">5</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input13</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event7</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/mouse2</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="i8042 PC AT keyboard controller">i8042</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:4"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:4</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">Sleep Button</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">6</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input2</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event2</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">platform</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:5"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:5</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">Fujitsu FUJ02E3</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">7</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input24</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event8</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">platform</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:6"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:6</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">PC Speaker</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">8</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input25</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event9</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="ISA bus">isa</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:7"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:7</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">Power Button</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">9</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input3</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event3</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">platform</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:8"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:8</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">Video Bus</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">a</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input30</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event14</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="">platform</dfn> </td></tr> </tbody> </table></div> </div> <div class="indented"> <div class="indented"> <table width="100%" class="node" summary="attributes of input:9"> <thead><tr><td class="first">id:</td><td class="second"><div class="id">input:9</div></td></tr></thead> <tbody> <tr><td class="first">product: </td><td class="second">AT Translated Set 2 keyboard</td></tr> <tr><td class="first">physical id: </td><td class="second"><div class="id">b</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input4</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">/dev/input/event4</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input4::capslock</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input4::numlock</div></td></tr> <tr><td class="first">logical name: </td><td class="second"><div class="id">input4::scrolllock</div></td></tr> <tr><td class="first">capabilities: </td><td class="second"><dfn title="i8042 PC AT keyboard controller">i8042</dfn> </td></tr> </tbody> </table></div> </div> </body> </html> Fujitsu-S7220-lshw.html (112,381 bytes) Fujitsu-S7220-lspci.txt (2,290 bytes) 00:00.0 Host bridge: Intel Corporation Mobile 4 Series Chipset Memory Controller Hub (rev 07) 00:02.0 VGA compatible controller: Intel Corporation Mobile 4 Series Chipset Integrated Graphics Controller (rev 07) 00:02.1 Display controller: Intel Corporation Mobile 4 Series Chipset Integrated Graphics Controller (rev 07) 00:1a.0 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #4 (rev 03) 00:1a.1 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #5 (rev 03) 00:1a.2 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #6 (rev 03) 00:1a.7 USB controller: Intel Corporation 82801I (ICH9 Family) USB2 EHCI Controller #2 (rev 03) 00:1b.0 Audio device: Intel Corporation 82801I (ICH9 Family) HD Audio Controller (rev 03) 00:1c.0 PCI bridge: Intel Corporation 82801I (ICH9 Family) PCI Express Port 1 (rev 03) 00:1c.1 PCI bridge: Intel Corporation 82801I (ICH9 Family) PCI Express Port 2 (rev 03) 00:1c.3 PCI bridge: Intel Corporation 82801I (ICH9 Family) PCI Express Port 4 (rev 03) 00:1d.0 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #1 (rev 03) 00:1d.1 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #2 (rev 03) 00:1d.2 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #3 (rev 03) 00:1d.7 USB controller: Intel Corporation 82801I (ICH9 Family) USB2 EHCI Controller #1 (rev 03) 00:1e.0 PCI bridge: Intel Corporation 82801 Mobile PCI Bridge (rev 93) 00:1f.0 ISA bridge: Intel Corporation ICH9M LPC Interface Controller (rev 03) 00:1f.2 IDE interface: Intel Corporation 82801IBM/IEM (ICH9M/ICH9M-E) 2 port SATA Controller [IDE mode] (rev 03) 00:1f.3 SMBus: Intel Corporation 82801I (ICH9 Family) SMBus Controller (rev 03) 08:00.0 Ethernet controller: Marvell Technology Group Ltd. 88E8055 PCI-E Gigabit Ethernet Controller (rev 14) 20:00.0 Network controller: Intel Corporation Ultimate N WiFi Link 5300 38:03.0 CardBus bridge: O2 Micro, Inc. OZ711SP1 Memory CardBus Controller (rev 01) 38:03.1 CardBus bridge: O2 Micro, Inc. OZ711SP1 Memory CardBus Controller (rev 01) 38:03.2 SD Host controller: O2 Micro, Inc. Integrated MMC/SD Controller (rev 02) 38:03.3 Mass storage controller: O2 Micro, Inc. Integrated MS/xD Controller (rev 01) Fujitsu-S7220-lspci.txt (2,290 bytes) Fujitsu-S7220-lscpu.txt (1,501 bytes) Architecture : x86_64 Mode(s) opératoire(s) des processeurs : 32-bit, 64-bit Boutisme : Little Endian Processeur(s) : 2 Liste de processeur(s) en ligne : 0,1 Thread(s) par cœur : 1 Cœur(s) par socket : 2 Socket(s) : 1 Nœud(s) NUMA : 1 Identifiant constructeur : GenuineIntel Famille de processeur : 6 Modèle : 23 Nom de modèle : Intel(R) Core(TM)2 Duo CPU P8700 @ 2.53GHz Révision : 10 Vitesse du processeur en MHz : 2533.390 Vitesse maximale du processeur en MHz : 2534,0000 Vitesse minimale du processeur en MHz : 800,0000 BogoMIPS : 5066.16 Virtualisation : VT-x Cache L1d : 32K Cache L1i : 32K Cache L2 : 3072K Nœud NUMA 0 de processeur(s) : 0,1 Drapaux : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ht tm pbe syscall nx lm constant_tsc arch_perfmon pebs bts rep_good nopl cpuid aperfmperf pni dtes64 monitor ds_cpl vmx smx est tm2 ssse3 cx16 xtpr pdcm sse4_1 xsave lahf_lm pti tpr_shadow vnmi flexpriority vpid dtherm ida Fujitsu-S7220-lscpu.txt (1,501 bytes) Compaq-E5300-Panic-20221118_184128.jpg (302,252 bytes) Fujitsu-P8700-20221118_183521.jpg (277,702 bytes)

toracat 2022-11-27 00:26 reporter ~0000750	EL9 requires the x86-64-v2 microarchitecture level (1). You can check if your hardware supports x86-64-v2 by running : /lib64/ld-linux-x86-64.so.2 --help Some example output is: Subdirectories of glibc-hwcaps directories, in priority order: x86-64-v4 x86-64-v3 x86-64-v2 (supported, searched) You can find more details on this and other features for EL9 in (2). (1) https://developers.redhat.com/blog/2021/01/05/building-red-hat-enterprise-linux-9-for-the-x86-64-v2-microarchitecture-level (2) https://srobb.net/rhel9.html

dufgrinder 2022-11-27 15:47 reporter ~0000751	Hi, Unfortunately, both my old legacy machines are x86-64-v1 So, many thanks for your help, we can close this bug and open an enhancement request for "sustainability" pupose ;) Olivier
